Tektronix P6201
| Attribute | Value |
|---|---|
| Bandwidth | 900 MHz |
| Probe Type | Active FET Probe |
| Attenuation Ratio | 10X |
| Input Impedance | 1 MΩ parallel with 1.8 pF |
| Input Capacitance | 1.8 pF |
| Dynamic Range | ±10 V (DC + Peak AC) |
| Rise Time | 400 ps |
| Power Supply Requirement | Requires Tektronix oscilloscope probe power connector |
| Cable Length | 1.2 m (approximately 4 ft) |
| Compatible Oscilloscopes | Tektronix oscilloscopes with probe power and BNC connector interface |
| Model | P6201 |
|---|

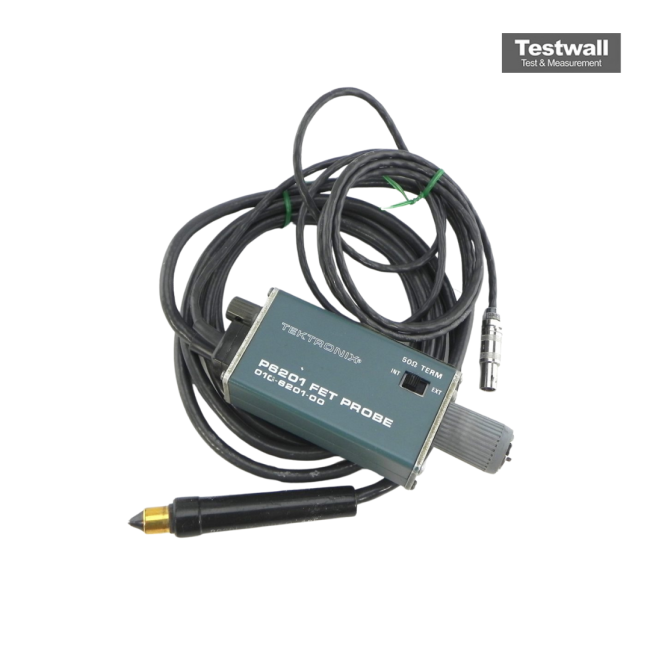

The Tektronix P6201 Active FET Probe offers exceptional signal fidelity from DC up to 900 MHz, featuring a low input capacitance of 1.5 pF and input resistance of 1 MΩ. With selectable 1X, 10X, and 100X attenuation and AC/DC coupling, it supports advanced signal acquisition. A variable DC offset of ±200 V and a selectable 50-ohm termination make it ideal for various oscilloscope systems.
Designed for digital logic family analysis including ECL, GaAs, CMOS, and TTL, the P6201 is also suited for high-speed analog signal characterization with precision in timing, bandwidth, and rise times.
Testwall can supply the used Tektronix P6201, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6201.
