Tektronix

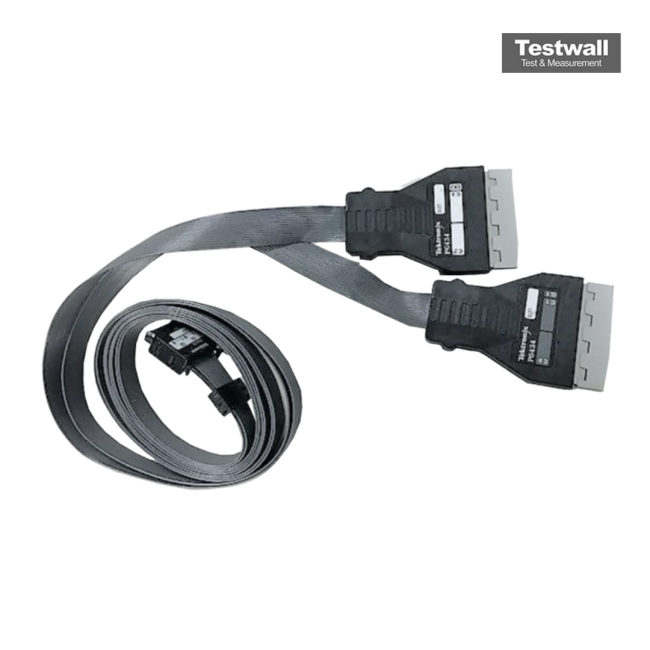

Tektronix P6434
Digital (Logic) Probe Probe Type
34 Channels Number of Channels
Tektronix MSO5000, MSO6000 Series Mixed Signal Oscilloscopes Compatible Oscilloscopes
-20V to +20V (absolute maximum) Input Voltage Range
-8V to +8V Threshold Range
| Attribute | Value |
|---|---|
| Probe Type | Digital (Logic) Probe |
| Number of Channels | 34 Channels |
| Compatible Oscilloscopes | Tektronix MSO5000, MSO6000 Series Mixed Signal Oscilloscopes |
| Input Voltage Range | -20V to +20V (absolute maximum) |
| Threshold Range | -8V to +8V |
| Input Impedance | 100 kΩ, 3 pF |
| Maximum Input Frequency | 500 MHz |
| Cable Length | 0.5 m (approximately) |
| Connector Type | High-density TekFlex Connector |
| Operating Temperature | 0°C to +50°C |
Tektronix P6434 Options:
- P6434 - L0 - English Manuals
- P6434 - L99 - No Manuals
| Model | P6434 |
|---|
The Tektronix P6434 features 0.
7 pF total capacitive loading, 20 kΩ input resistance, and 6.
5 Vp-p dynamic range, making it ideal for minimal circuit intrusion and wide logic compatibility.
Designed for hardware debug, embedded system integration, and processor/bus verification, it supports connectorless probing and multiple pin spacing formats.
Testwall can supply the used Tektronix P6434, fully tested.
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality.
Please contact us directly if you need calibration or repair of the Tektronix P6434.
