Tektronix P6207
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Rise Time | 87.5 ps |
| Input Impedance | 50 Ω |
| Dynamic Range | ±2.5 V |
| Probe Type | Active FET Probe |
| Attenuation Ratio | 10X |
| Maximum Input Voltage | ±15 V (DC + Peak AC) |
| Cable Length | 1.2 m (approximately 4 ft) |
| Compatible Oscilloscopes | Tektronix TDS/CSA 8000 Series and other high-bandwidth Tektronix oscilloscopes |
| Connector Type | SMA Connector |
| Model | P6207 |
|---|

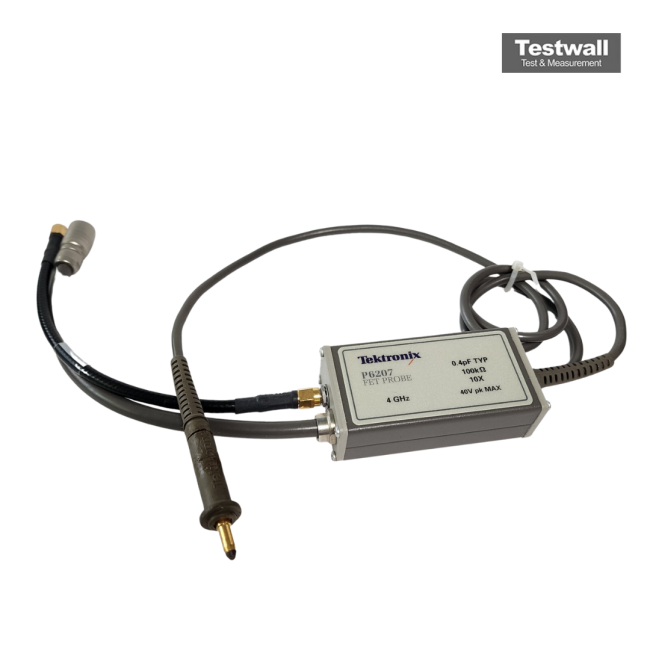

The Tektronix P6207 Active FET Probe delivers true signal fidelity from DC to 4 GHz with ultra-low 0.5 pF input capacitance and 100 kΩ resistance, minimizing circuit loading. Its TEKPROBE® SMA interface ensures direct integration with TDS820 oscilloscopes without extra power supplies. Featuring variable DC offset (±5 V), gold-plated tips, and small geometry access, it's ideal for high-speed circuit diagnostics.
Perfect for ECL, GaAs, MOS, CMOS, TTL logic families and analog characterization, it supports amplitude, timing, propagation delay, and bandwidth measurements with ease.
Testwall can supply the used Tektronix P6207, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6207.
