Tektronix P6249
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Rise Time | 87.5 ps |
| Input Impedance | 50 Ω |
| Dynamic Range | ±0.6 V |
| Attenuation Ratio | 10X |
| Maximum Input Voltage | ±15 V (DC + Peak AC) |
| Cable Length | 1.2 m (46 in) |
| Compatible Oscilloscopes | Tektronix TDS694C, CSA803, 11801 Series, and other 50 Ω SMA input oscilloscopes |
| Connector Type | SMA |
| Probe Type | Active Differential Probe |
Tektronix P6249 Options:
- P6249 - C3 - Calibration Service 3 Years
- P6249 - C5 - Calibration Service 5 Years
- P6249 - D1 - Calibration Data Report
- P6249 - D3 - Calibration Data Report 3 Years (with Option C3)
- P6249 - D5 - Calibration Data Report 5 Years (with Option C5)
- P6249 - R3 - Repair Service 3 Years
- P6249 - R5 - Repair Service 5 Years
| Model | P6249 |
|---|

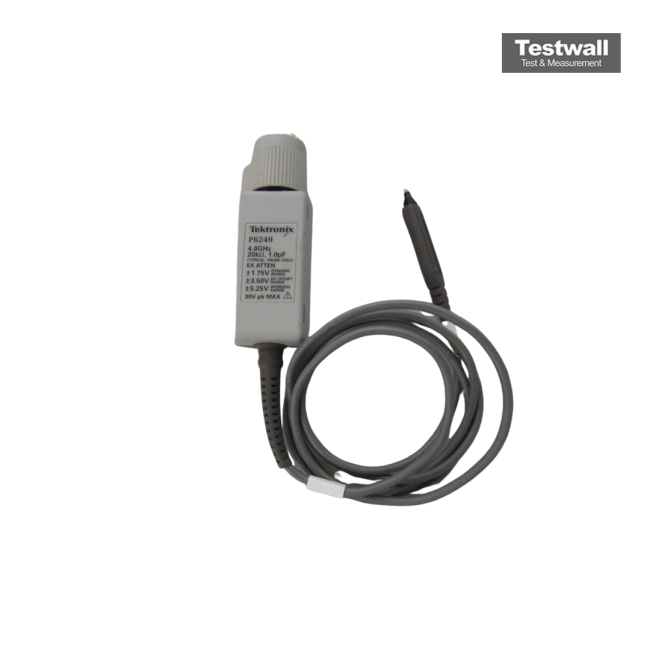

The Tektronix P6249 Active Probe delivers 4 GHz bandwidth with <120 ps rise time, offering precise signal fidelity for high-speed digital systems. Featuring the TekProbe® II BNC Interface, this probe supports oscilloscopes including the TDS/CSA7000, 6000, and 700 series. It offers a dynamic range of 4 Vp-p, and enables direct SMD access through its small probe head form factor.
Ideal for signal integrity, jitter analysis, and testing applications involving PCI Express, DDR, Gigabit Ethernet, and more. Enables probing signals with voltage swings up to 8 Vp-p efficiently.
Testwall can supply the used Tektronix P6249, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6249.
