Tektronix P6217
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Rise Time | 1.75 ns |
| Input Resistance | 10 MΩ |
| Input Capacitance | 9.5 pF (with probe tip) |
| Attenuation Ratio | 10X |
| Maximum Input Voltage | 300 V RMS (CAT II) |
| Cable Length | 1.2 m (4 ft) |
| Compensation Range | 15 pF to 47 pF |
| Connector Type | BNC |
| Compatible Oscilloscopes | Tektronix oscilloscopes with BNC input, including 2000, 3000, and 5000 series |
Tektronix P6217 Options:
- P6217 - Opt. A1 through A5 - International Power Plug Options (Available, see General Customer Information Section)
- 1103 - 013-0271-01 - Probe Tip Adapter for P6207, P6217 and SD-14 Active Probes, Instruction Sheet Plus SMA Male 50 Ω Termination
| Model | P6217 |
|---|

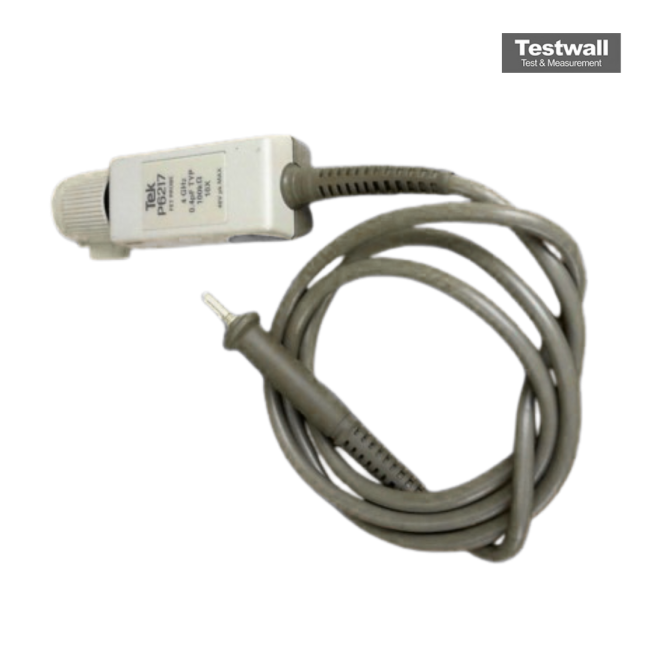

The Tektronix P6217 Active Probe offers precision signal measurement with 10X attenuation, an impressive 4 GHz bandwidth at -3dB, and ultra-low input capacitance of 0.40 pF. With an input resistance of 100 kΩ and 1.5-meter cable length, it ensures high signal integrity and compatibility for demanding testing environments.
Designed for in-circuit probing, it enables accurate voltage and current readings without removing components, making it ideal for high-frequency diagnostics and system validation.
Testwall can supply the used Tektronix P6217, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6217.
