Tektronix TDS2CM
Communications Extension Module Module Type
Tektronix TDS200 and TDS1000/2000 Series Oscilloscopes Compatible Oscilloscopes
RS-232, GPIB (IEEE-488), and Centronics Parallel Port Interfaces Provided
Up to 19,200 baud RS-232 Baud Rate
IEEE-488.2 Compliant GPIB Standard
| Attribute | Value |
|---|---|
| Module Type | Communications Extension Module |
| Compatible Oscilloscopes | Tektronix TDS200 and TDS1000/2000 Series Oscilloscopes |
| Interfaces Provided | RS-232, GPIB (IEEE-488), and Centronics Parallel Port |
| RS-232 Baud Rate | Up to 19,200 baud |
| GPIB Standard | IEEE-488.2 Compliant |
| Printer Support | Direct hard copy output to compatible printers via Centronics parallel interface |
| Remote Control | Full remote programmability via GPIB or RS-232 interface |
| Power Source | Powered directly through the oscilloscope expansion slot (no external power required) |
| Form Factor | Plug-in module for oscilloscope rear expansion slot |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Model | TDS2CM |
|---|

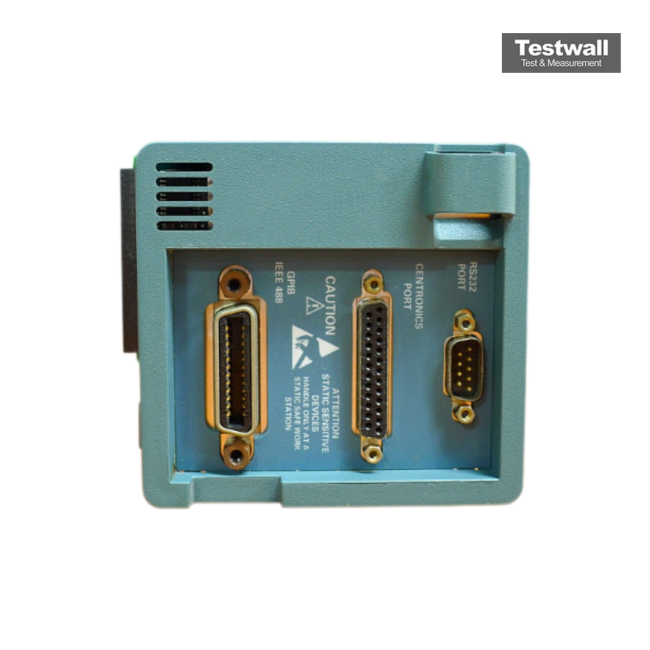

The Tektronix TDS2CM module expands oscilloscope functionality with Centronics-type parallel port, RS-232, and GPIB programmability. It supports full talk/listen modes and precise control of modes, settings, and measurements.
Ideal for advanced test setups, it features a 9-pin DTE RS-232 interface with up to 19,200 baud rate and IEEE Std 488-1987 compliance for GPIB communication.
Testwall can supply the used Tektronix TDS2CM, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2CM.
