Tektronix P6240
| Attribute | Value |
|---|---|
| Bandwidth | 240 MHz |
| Attenuation | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 13 pF (with compensation box) |
| Maximum Input Voltage | 300 V RMS CAT II |
| Rise Time | 1.5 ns |
| Cable Length | 1.3 m (4.3 ft) |
| Compensation Range | 15 pF to 18 pF |
| Compatible Oscilloscopes | Tektronix oscilloscopes with TekProbe BNC interface |
| Connector Type | BNC |
Tektronix P6240 Options:
- P6240 - 013-0280-00 - One to Two Adapter
- P6240 - 013-0281-01 - Handheld Probe Tip Adapter w/ Tips
- P6240 - 013-0282-00 - 50 to 75 Converter
- P6240 - 013-0309-00 - IC Grabber, 2 each
- P6240 - 196-3302-00 - 6 in. Ground Lead
- P6240 - 020-2008-00 - Y Lead Adapter, pkg. of 10
- P6240 - 206-0364-01 - SMT KlipChip Adapter, 1 each
- P6240 - 352-1039-01 - Probe Cable Loom, pkg. of 6
- P6240 - SMK4 - IC Grabber, 4 each
- P6240 - SMG50 - SMT KlipChip Adapter, 20 each
| Model | P6240 |
|---|

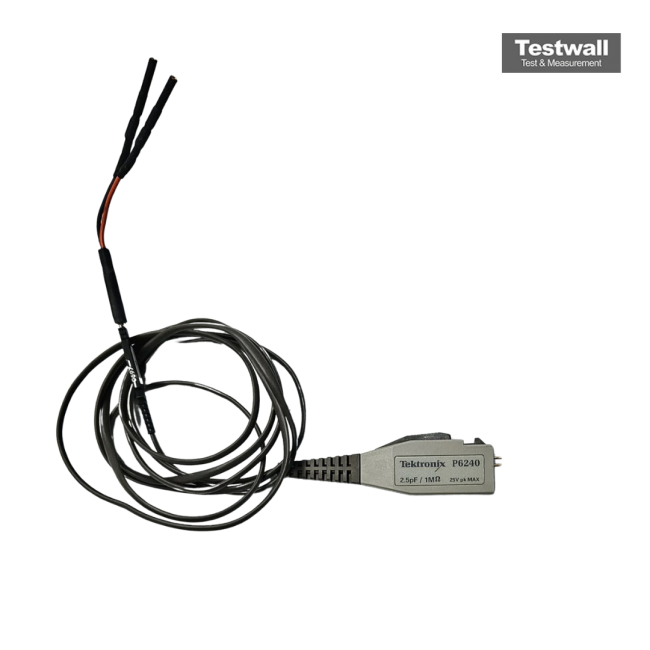

The Tektronix P6240 is an 800 MHz FET active probe designed for high-speed signal probing. It offers 20x attenuation and supports the TLS216 Logic Scope. Included components enhance versatility: adapters (One-to-Two, Y Lead), IC Grabbers, SMT KlipChip™ adapters, a 50 to 75 Ω converter, probe tip and cable loom, and ground leads, enabling precise measurements in a variety of setups.
Ideal for digital design debugging, the P6240 enables detailed signal access with minimized loading, making it suitable for SMT and IC-level testing in embedded environments.
Testwall can supply the used Tektronix P6240, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6240.
