Tektronix

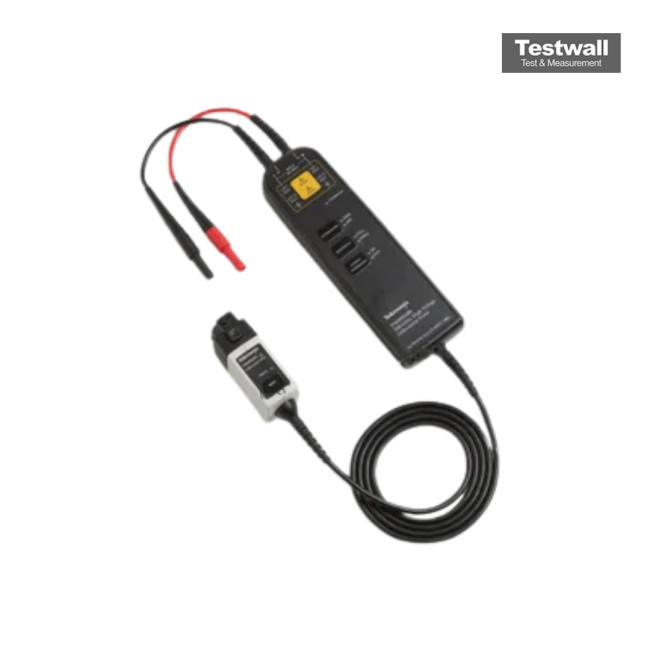

Tektronix TMDP0200
Differential Probe, 200 MHz
200 MHz Bandwidth
10X Attenuation Ratio
10 MΩ Input Resistance
13.5 pF Input Capacitance
300 V RMS CAT II Maximum Input Voltage
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Attenuation Ratio | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 13.5 pF |
| Maximum Input Voltage | 300 V RMS CAT II |
| Rise Time | 1.75 ns |
| Cable Length | 1.3 m (4.3 ft) |
| Compensation Range | 15 pF to 18 pF |
| Compatible Oscilloscopes | Tektronix MDO3000, MDO4000, MSO/DPO2000B, MSO/DPO3000, MSO/DPO4000B Series |
| Connector Type | BNC |
Tektronix TMDP0200 Options:
- TMDP0200 - C3 - Calibration Service 3 Years
- TMDP0200 - C5 - Calibration Service 5 Years
- TMDP0200 - D1 - Calibration Data Report
- TMDP0200 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TMDP0200 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TMDP0200 - R3 - Repair Service 3 Years (including warranty)
- TMDP0200 - R5 - Repair Service 5 Years (including warranty)
- TMDP0200 - SILV200 - Standard warranty extended to 5 years
| Model | TMDP0200 |
|---|
The Tektronix TMDP0200 offers safe, accurate floating measurements with up to 200 MHz bandwidth and ±750 V differential capability, using TekVPI® interface for seamless oscilloscope integration and enhanced signal fidelity.
Ideal for medium-voltage applications including power converters and IGBT circuits, it provides overrange indication, switchable bandwidth limit, and improved signal-to-noise ratio.
Testwall can supply the used Tektronix TMDP0200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TMDP0200.
