Tektronix

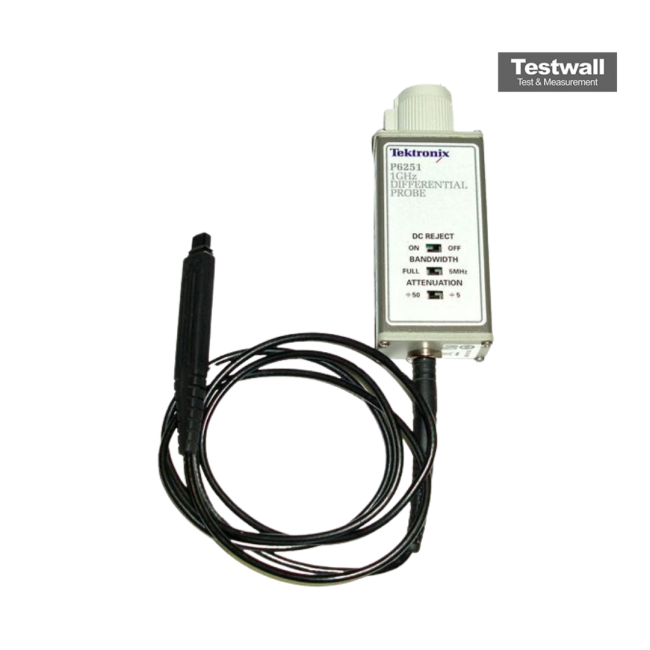

Tektronix P6251
High-voltage Differential Probe
1 GHz Bandwidth
350 ps Rise Time
50 Ω Input Impedance
10X Attenuation Ratio
±15 V (DC + Peak AC) Maximum Input Voltage
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Rise Time | 350 ps |
| Input Impedance | 50 Ω |
| Attenuation Ratio | 10X |
| Maximum Input Voltage | ±15 V (DC + Peak AC) |
| Cable Length | 1.2 m (4 ft) |
| Propagation Delay | 5.5 ns (typical) |
| Connector Type | SMA |
| Compatible Oscilloscopes | Tektronix oscilloscopes with 50 Ω input |
| Operating Temperature | 0°C to +50°C |
Tektronix P6251 Options:
- P6251 - L5 - Japanese manual
- P6251 - L7 - Simplified Chinese manual
- P6251 - C3 - Calibration Service 3 Years
- P6251 - C5 - Calibration Service 5 Years
- P6251 - R3 - Repair Service 3 Years (including warranty)
- P6251 - R5 - Repair Service 5 Years (including warranty)
- P6251 - SILV600 - Standard warranty extended to 5 years
- P6251 - SILV900 - Standard warranty extended to 5 years
| Model | P6251 |
|---|
The Tektronix P6251 is a high-voltage differential probe offering 1 GHz bandwidth, <1 pF input capacitance, 1 MΩ differential input resistance, and ±42 V input voltage. It features bandwidth-limiting filters, DC reject, and AutoZero functions.
Ideal for digital design, CAN/LIN bus validation, R&D, and high-speed power systems with direct connectivity to TekProbe™ interface scopes.
Testwall can supply the used Tektronix P6251, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6251.
