Tektronix P6430
| Attribute | Value |
|---|---|
| Probe Type | Current Probe |
| Current Range | Up to 30 A RMS / 50 A Peak |
| Bandwidth | DC to 50 MHz |
| Sensitivity | 10 mA/div to 10 A/div |
| Maximum Conductor Size | 5 mm diameter |
| Output Voltage | 10 mV/A |
| Rise Time | 7 ns |
| Compatible Oscilloscopes | Tektronix oscilloscopes with TEKPROBE interface |
| Power Requirement | Powered via TEKPROBE interface (no external power required) |
| Operating Temperature | 0°C to +50°C |
| Model | P6430 |
|---|

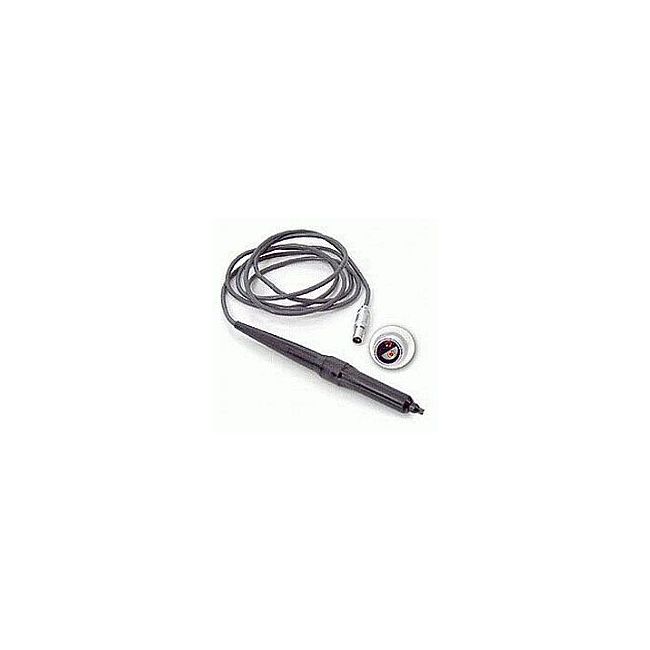

The Tektronix P6430 probe is engineered for precise temperature measurement, compatible with Tektronix Digital Multimeters. It features a plug-in nose tip sensor for easy replacement and a compact design ideal for tight circuitry. Operating range spans -55°C to +150°C with a safe measurement surface voltage of up to 100 V.
Designed for durability, it handles extreme conditions including high altitudes, shocks up to 400 g's, and 95% relative humidity. The probe includes a 164 cm cable and weighs only 84 grams.
Testwall can supply the used Tektronix P6430, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6430.
