Tektronix

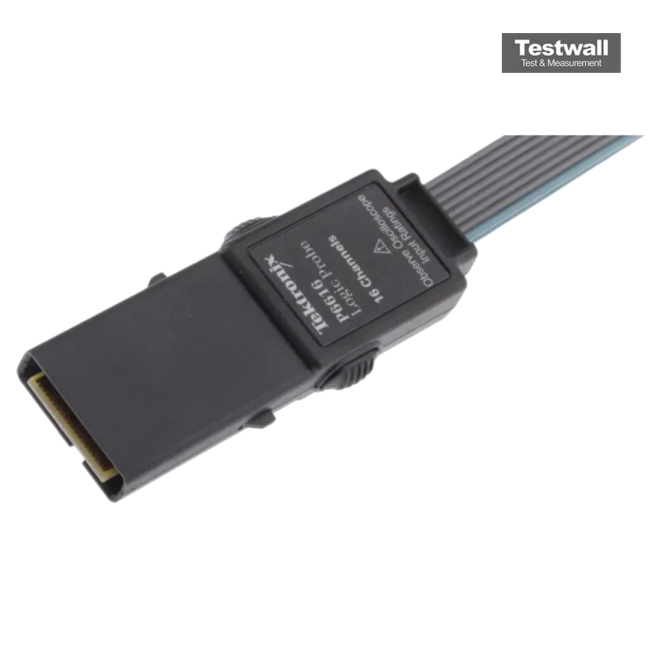

Tektronix P6616
General Purpose Logic Probe for MSO-B series, 16 Ch.
16 Number of Channels
Digital (Logic) Signal Type
500 MHz Maximum Input Frequency
1 ns Minimum Detectable Pulse Width
-20 V to +30 V Input Voltage Range
| Attribute | Value |
|---|---|
| Number of Channels | 16 |
| Signal Type | Digital (Logic) |
| Maximum Input Frequency | 500 MHz |
| Minimum Detectable Pulse Width | 1 ns |
| Input Voltage Range | -20 V to +30 V |
| Threshold Voltage Range | -6 V to +6 V |
| Input Impedance | 100 kΩ, 8 pF |
| Cable Length | 1.8 m (6 ft) |
| Compatible Instruments | Tektronix MSO/DPO70000, MSO5000, and MSO/DPO4000 Series Oscilloscopes |
| Connector Type | Micro-connector (compatible with Tektronix logic analyzer interface) |
Tektronix P6616 Options:
- P6616 - 2RL - Record length option: 25 M points (4 ch) / 50 M points (1 or 2 ch)
- P6616 - 5RL - Record length option: 50 M points (4 ch) / 125 M points (1 or 2 ch)
- P6616 - 10RL - Record length option: 125 M points (4 ch) / 250 M points (1 or 2 ch)
- P6616 - VET - Visual Trigger: trigger on up to 8 user-specified areas including rectangle, triangle, trapezoid, hexagon, and user-specified shapes
- P6616 - SR-EMBD - Serial Triggering and Analysis for I2C and SPI buses
- P6616 - SR-AUTO - Serial Triggering and Analysis for CAN, LIN, and FlexRay buses
- P6616 - SR-AERO - Serial Triggering and Analysis for MIL-STD-1553 buses
- P6616 - SR-ENET - Serial Triggering and Analysis for Ethernet buses
- P6616 - SR-COMP - Serial Triggering and Analysis for RS-232/422/485/UART buses
- P6616 - SR-USB - Serial Triggering and Analysis for USB 2.0 (Low Speed, Full Speed, High Speed)
- P6616 - ET3 - Serial bus compliance test software for Ethernet 10BASE-T, 10BASE-Te, 100BASE-TX, and 1000BASE-T
- P6616 - MOST - Serial bus compliance test software for MOST50 and MOST150 electrical
- P6616 - USB - Serial bus compliance test software for USB 2.0 physical-layer devices
- P6616 - PWR - Power analysis software: power quality, switching loss, harmonics, magnetic measurements, SOA, modulation, ripple, and slew rate
- P6616 - DJA - DPOJET Advanced software: jitter, timing, eye diagram measurements, Rj/Dj separation, eye diagram masks, and Pass/Fail limits
- P6616 - LT - Limit test software for long-term signal monitoring and pass/fail testing
- P6616 - MTM - Mask test software including telecommunications and computer standard masks
- P6616 - DDRA - DDR memory bus analysis software for DDR1, DDR2, LP-DDR, and LP-DDR2
- P6616 - SVE - SignalVu vector signal analysis software package
- P6616 - SVA - SignalVu vector signal analysis software package
- P6616 - SVM - SignalVu vector signal analysis software package
- P6616 - SVP - SignalVu vector signal analysis software package
- P6616 - SVT - SignalVu vector signal analysis software package
| Model | P6616 |
|---|
The Tektronix P6616 MSO probe offers 16 digital channels via two 8-channel pods, designed with recessed ground tips and low 3 pF loading. It delivers fast acquisition up to 500 MHz toggle rate and 1 ns pulse width.
Compatible with Tektronix MSO4000B and MSO5000 Series, it ensures efficient probing with 100 kΩ input resistance and a compact, color-coded interface for easy setup.
Testwall can supply the used Tektronix P6616, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6616.
