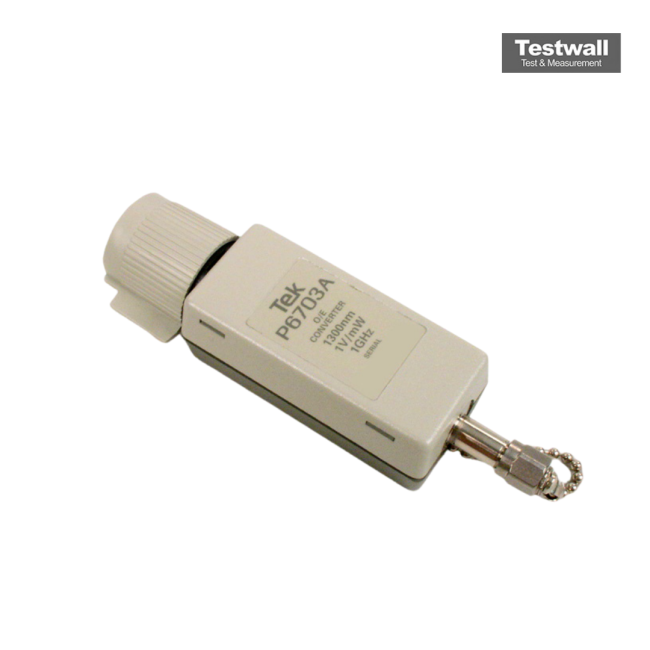

Tektronix P6703A
| Attribute | Value |
|---|---|
| Wavelength Range | 750 nm to 1650 nm |
| Optical Input Connector | FC/PC |
| Maximum Input Optical Power | +10 dBm (10 mW) |
| Electrical Bandwidth | DC to 1 GHz |
| Conversion Gain | 700 V/W typical |
| Output Connector | SMA |
| Output Impedance | 50 Ohms |
| Detector Type | InGaAs PIN Photodiode |
| Power Supply | Powered via TekProbe interface or external power supply |
| Compatible Instruments | Tektronix oscilloscopes with TekProbe BNC interface |
| Model | P6703A |
|---|
The Tektronix P6703A Optical to Electrical Converter transforms optical signals into electronic outputs for oscilloscope analysis. Operating within a 1100 to 1700 nm wavelength range, it features an InGaAs detector, high bandwidth, and 0 to 1 mW dynamic range. Its 100 µm fiber compatibility and <0.15 dB connector uncertainty ensure precision in optical waveform analysis.
Ideal for use with TEKPROBE-compatible oscilloscopes or Tektronix power supply adapters, the P6703A excels in multichannel averaging and pulse power measurements, supporting advanced fiber-optic and laser applications.
Testwall can supply the used Tektronix P6703A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6703A.
