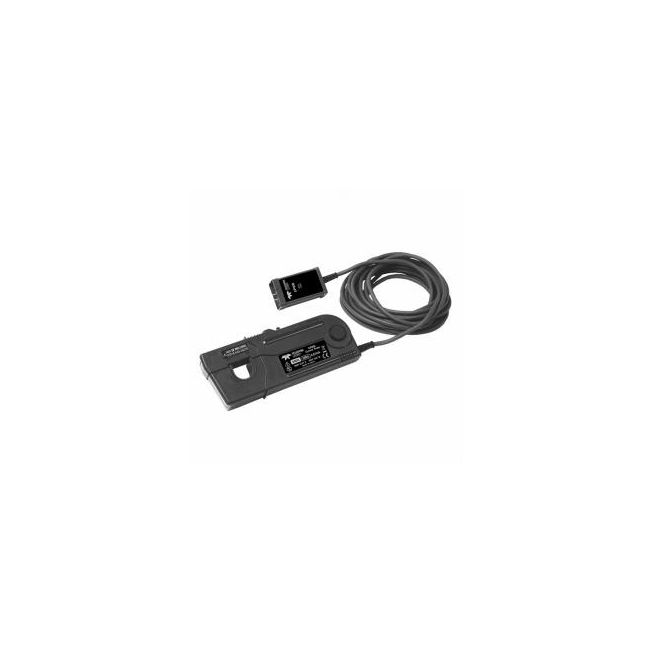

Teladyne LeCroy CP500
Current Probe, 500A peak pulse, 2 MHz
500 MHz Bandwidth
500 A DC Maximum DC Current
700 A Peak Maximum AC Current (Peak)
10 mV/A Current Sensitivity
700 ps Rise Time
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Maximum DC Current | 500 A DC |
| Maximum AC Current (Peak) | 700 A Peak |
| Current Sensitivity | 10 mV/A |
| Rise Time | 700 ps |
| Output Connector | BNC |
| Cable Length | 1.8 m (6 ft) |
| Maximum Conductor Diameter | 5 mm |
| Operating Temperature Range | 0°C to +50°C |
| Power Supply Requirement | Requires CP500 Power Supply (included) |
Teladyne LeCroy CP500 Options:
- CP500 - CP030 - 30 A; 50 MHz Current Probe – AC/DC; 30 Arms; 50 A Peak Pulse
- CP500 - CP030A - 30 A; 50 MHz High Sensitivity Current Probe – AC/DC; 30 Arms; 50 A Peak Pulse
- CP500 - CP031 - 30 A; 100 MHz Current Probe – AC/DC; 30 Arms; 50 A Peak Pulse
- CP500 - CP031A - 30 A; 100 MHz High Sensitivity Current Probe – AC/DC; 30 Arms; 50 A Peak Pulse
- CP500 - CP150 - 150 A; 10 MHz Current Probe – AC/DC; 150 Arms; 500 A Peak Pulse
- CP500 - DCS015 - Deskew Calibration Source for CP031, CP031A, CP030, CP030A and AP015
| Model | CP500 |
|---|
The Teledyne LeCroy CP500 measures currents up to 500 A RMS continuously and 700 A peak, with a bandwidth of 2 MHz, ideal for low-frequency power electronics testing. It features ~100 mA/div sensitivity and supports large 20 mm conductors for versatile applications.
With ProBus connectivity, it integrates seamlessly with LeCroy oscilloscopes, enabling precise measurement and control in slower switching power validation environments.
Testwall can supply the used Teledyne LeCroy CP500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy CP500.
