Teladyne LeCroy ZD1500
| Attribute | Value |
|---|---|
| Bandwidth | 1500 MHz |
| Probe Type | Differential Active Probe |
| Input Voltage Range | ±8 V (differential), ±4 V (single-ended) |
| Dynamic Range | ±8 V |
| Input Impedance | 1 MΩ (differential), 450 kΩ (single-ended) |
| Input Capacitance | 0.6 pF (differential), 1.2 pF (single-ended) |
| CMRR (Common Mode Rejection Ratio) | >40 dB at 100 MHz |
| Attenuation Ratio | 10:1 / 100:1 (selectable) |
| Maximum Input Voltage | ±30 V DC + Peak AC (CAT I) |
| Compatible Oscilloscope Interface | ProBus Interface (Teledyne LeCroy compatible oscilloscopes) |
Teladyne LeCroy ZD1500 Options:
- ZD1500 - PACC-ZD001 - Y Lead Adapter, Qty 1
- ZD1500 - PACC-ZD002 - Solder-In Lead, Qty 2
- ZD1500 - PACC-ZD003 - Long Spring Loaded Bendable Ground, Qty 2
- ZD1500 - PACC-ZD004 - Tip Saver, Qty 2
- ZD1500 - PACC-ZD005 - Swivel Tip Adapter
- ZD1500 - PACC-ZD006 - Small IC Adapter, Qty 2
- ZD1500 - PACC-ZD009 - Micro Pogo Pin Tip, Qty 6
- ZD1500 - PACC-LD003 - Right Angle Connector Short, Qty 2
- ZD1500 - PACC-LD004 - Right Angle Connector Long, Qty 2
- ZD1500 - PK006-4 - Micrograbber, Qty 2
- ZD1500 - PACC-CL001 - Minigrabber, Qty 2
- ZD1500 - PACC-CD008 - Short Spring Loaded Bendable Ground, Qty 2
- ZD1500 - PCF200 - Probe Calibration Fixture, Qty 1
- ZD1500 - PK111 - ZD Replacement Kit
- ZD1500 - PACC-MS001 - Hands Free Probe Holder, Qty 1
| Model | ZD1500 |
|---|

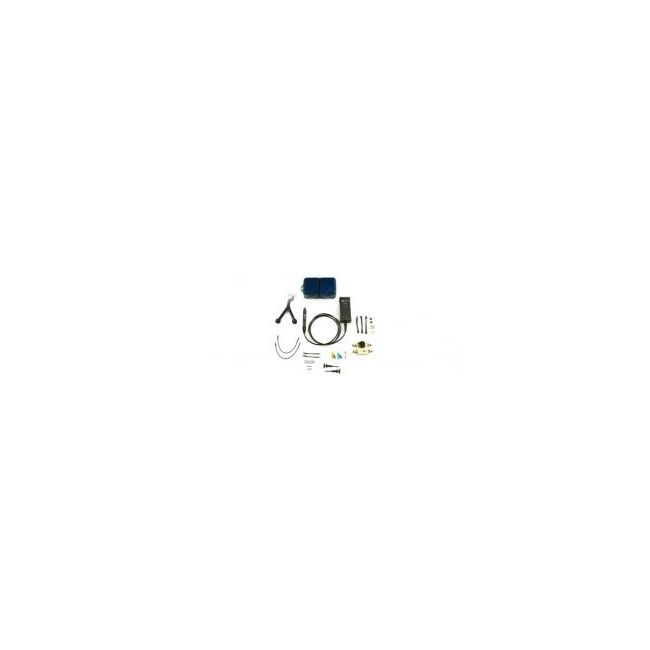

The Teledyne LeCroy ZD1500 active differential probe offers a 1.5 GHz bandwidth (typical up to 1.7 GHz) with ultra-low loading, ~1 pF input capacitance, and 1 MΩ differential impedance. Supporting ±8 V differential and ±10 V common-mode range, it delivers ~1.75 mVrms noise floor and ~60 dB CMRR at 50/60 Hz for precision measurements.
Designed for high-speed digital integrity testing, the ZD1500 ensures accurate signal capture with ProBus-powered operation and automatic gain/offset control, making it ideal for demanding engineering applications.
Testwall can supply the used Teledyne LeCroy ZD1500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy ZD1500.
