Tektronix P6717A

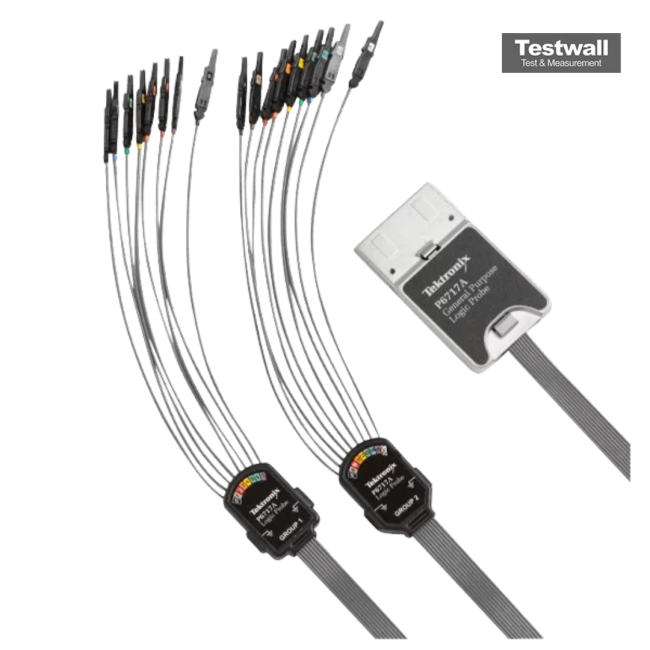

Tektronix Logic Probe Tektronix P6717A General Purpose Logic Probe, 17 Ch., for MSO70000 SeriesNo test and measurement solution is complete without probing, and the consideration of its impact on your system and your measurement time. With the industry’s highest-bandwidth diffeial logic probes, the Tektronix P6700 Series logic probes enhance the performance of the Tektronix MSO70000 Series Mixed Signal Oscilloscopes by providing connectivity and signal integrity needed for broad system visibility. Equipped with 17 channels, these logic probes plug seamlessly into the MSO70000 Series with up to 2.5 GHz of signal bandwidth. Select from a variety of attachment mechanisms, including the high-density D-Max® Probing Technology that eliminates the need for onboard connectors. The Tektronix P6717A and P6780 logic probes break out 16 data channels and 1 clock/data channel over 2 flying lead sets (Group 1 and Group 2). Each lead set includes eight leads that have a positive signal input on one side and a negative input on the opposite side for connecting to individual test points. Group 2 also includes a clock/qualifier input (see Figure 1 for illustration of the Tektronix P6717A or P6780 alongside traditional Oscilloscope probes).Features and Specifications of the Tektronix P6717A includes:

High-performance 17-channel Logic Probes for Broad System Visibility (16 data, 1 clock/data)

Bandwidths up to 2.5 GHz for Connections to Today's Fast Digital Signals

Variety of Connectivity Options for Reliable Attachment to Devices under Test

Hardware Debug and Verification

Processor/Bus Debug and Verification

High-performance Embedded System, Debug, and Verification
