Tektronix

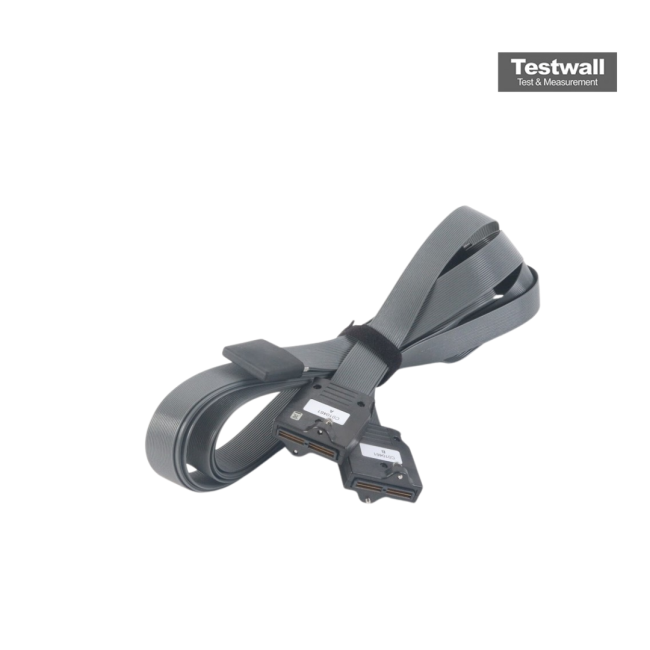

Tektronix P6960DBL
Logic Analyzer Probe
Digital Logic Probe Probe Type
60 Channels Number of Channels
Tektronix TLA Series Logic Analyzers Compatible Instruments
-6V to +6V Input Voltage Range
±50 mV Threshold Accuracy
| Attribute | Value |
|---|---|
| Probe Type | Digital Logic Probe |
| Number of Channels | 60 Channels |
| Compatible Instruments | Tektronix TLA Series Logic Analyzers |
| Input Voltage Range | -6V to +6V |
| Threshold Accuracy | ±50 mV |
| Maximum Input Frequency | Up to 500 MHz |
| Cable Length | 1.2 m (approximately 4 ft) |
| Connector Type | Dual 30-Channel Mictor Connectors |
| Input Impedance | 100 kΩ ± 2% in parallel with 8 pF |
| Operating Temperature | 0°C to +50°C |
Tektronix P6960DBL Options:
- P6960DBL - L0 - English manual
- P6960DBL - L99 - No manual
- P6960DBL - CA1 - Single calibration event or coverage for the designated calibration interval, whichever comes first
- P6960DBL - C3 - Calibration Service, 3 Years
- P6960DBL - C5 - Calibration Service, 5 Years
- P6960DBL - R3 - Repair Service, 3 Years
- P6960DBL - R5 - Repair Service, 5 Years
- P6960DBL - R1PW - Repair Service Coverage, 1-year Post Warranty
- P6960DBL - R2PW - Repair Service Coverage, 2-years Post Warranty
- P6960DBL - R3DW - Repair Service Coverage, 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- P6960DBL - R5DW - Repair Service Coverage, 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | P6960DBL |
|---|
The Tektronix P6960DBL is a high-density DDR memory interface probe offering <0.7 pF loading, 20 kΩ input resistance, and 6.5 Vp-p dynamic range. Engineered for signal integrity in high-speed DDR3/DDR4 and LPDDR debug applications.
Features a connectorless, compact form factor with D-Max® Probing Technology for minimal intrusion and easy embedded system access.
Testwall can supply the used Tektronix P6960DBL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6960DBL.
