Tektronix P7360A
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Rise Time | 58.3 ps |
| Input Voltage Range | ±800 mV (differential) |
| Input Impedance | 100 kΩ differential, 50 Ω single-ended termination |
| Dynamic Range | ±400 mV per side (±800 mV differential) |
| Common Mode Rejection Ratio (CMRR) | Greater than 16 dB at 1 GHz |
| Probe Interface | TekConnect interface compatible with Tektronix DSA/DPO70000 series oscilloscopes |
| Attenuation | 12.5:1 |
| Cable Length | Approximately 1.2 m (4 ft) |
| Probe Tip Configuration | Differential solder-down tip with 0.5 mm pitch compatibility |
| Model | P7360A |
|---|

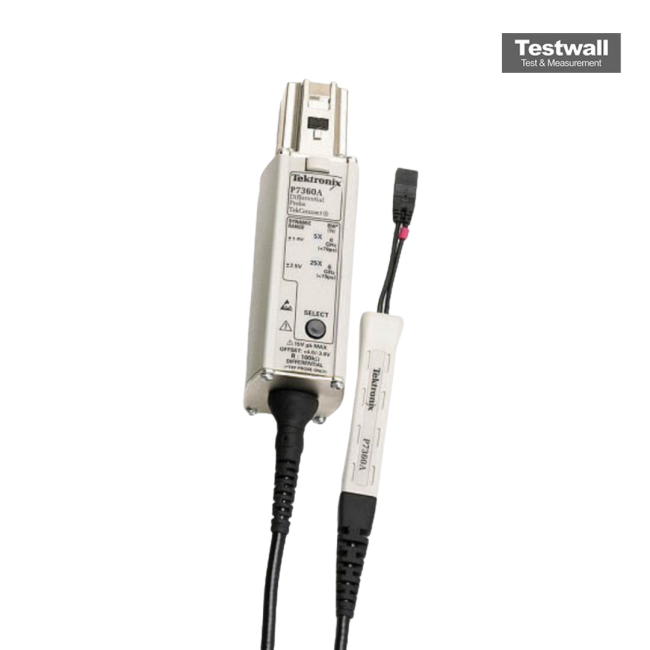

The Tektronix P7360A active probe offers 6.0 GHz typical bandwidth and utilizes the Z-Active architecture for low noise and high signal fidelity. With 2 Vp-p input range at 5x attenuation, 100 kΩ differential DC resistance, and Tip-Clip™ assemblies, it provides exceptional probing flexibility and precision.
Optimized for MIPI D/C-PHY, LPDDR2/3, PCIe, SATA, and USB, the P7360A delivers low loading, high CMRR, and easy adaptation to soldered, handheld, or fixtured setups using interchangeable tips.
Testwall can supply the used Tektronix P7360A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P7360A.
