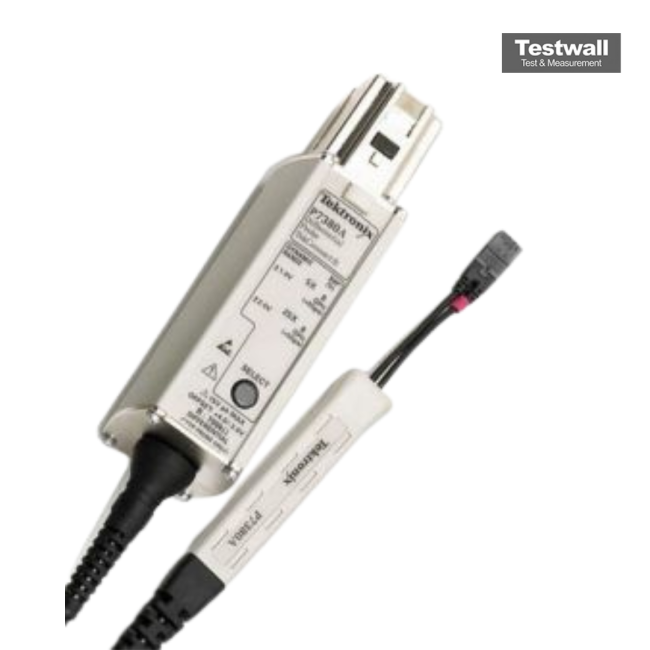

Tektronix P7380A
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Rise Time | 48.6 ps |
| Input Impedance | 50 Ω (differential) |
| Dynamic Range | ±800 mV differential |
| Common Mode Range | ±1 V |
| Common Mode Rejection Ratio (CMRR) | >18 dB at 8 GHz |
| Attenuation | 10X fixed |
| Compatible Oscilloscopes | Tektronix TDS/CSA/DSA/DPO Series with TekConnect interface |
| Cable Length | Approximately 1.2 m (4 ft) |
| Probe Type | Differential Active Probe |
Tektronix P7380A Options:
- P7380A - C3 - Calibration Service 3 Years
- P7380A - C5 - Calibration Service 5 Years
- P7380A - D3 - Calibration Data Report 3 Years (with Opt. C3)
- P7380A - D5 - Calibration Data Report 5 Years (with Opt. C5)
- P7380A - G3 - Complete Care 3 Years (includes loaner, discount on scheduled calibration and more)
- P7380A - G5 - Complete Care 5 Years (includes loaner, discount on scheduled calibration and more)
- P7380A - R3 - Repair Service 3 Years
- P7380A - R5 - Repair Service 5 Years
- P7380A - L0 - English manual
- P7380A - L5 - Japanese manual
- P7380A - L7 - Simplified Chinese manual
- P7380A - D1 - Calibration Data Report
- P7380A - R3DW - Repair Service Coverage 3 Years (includes product warranty period); 3-year period starts at time of customer instrument purchase
- P7380A - R5DW - Repair Service Coverage 5 Years (includes product warranty period); 5-year period starts at time of customer instrument purchase
| Model | P7380A |
|---|
The Tektronix P7380A offers high signal fidelity with a typical bandwidth of >8.0 GHz, making it ideal for demanding high-speed applications. It supports 2 Vp-p at 5x attenuation and 5 Vp-p at 25x attenuation, with a DC input resistance of 100 kΩ differential and 50 kΩ single-ended. The probe features interchangeable Tip-Clip™ assemblies, solder-down capability, and handheld probing with variable spacing for versatile use. AC loading maintains Zmin >290 Ω from 4 GHz to 8 GHz for minimal signal interference.
Ideal for single-ended or differential measurements, the P7380A is suited for applications requiring low probe loading and flexible connectivity. It integrates easily with TekConnect® interfaces, ensuring seamless operation.
Testwall can supply the used Tektronix P7380A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P7380A.
