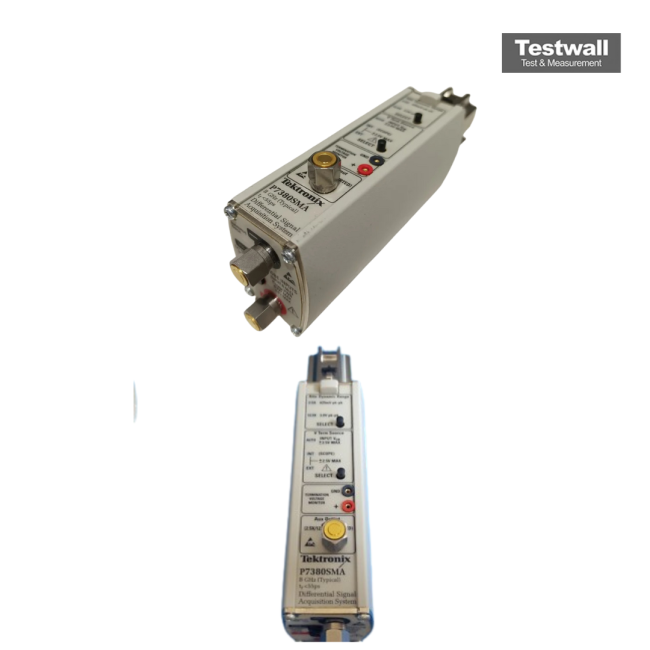

Tektronix Diffeial Probe Tektronix P7380SMA Diffeial Probe, 8 GHz, SMATektronix Diffeial Probe Tektronix P7380SMA Diffeial Probe, 8 GHz The Tektronix P7380SMA probe provides a high fidelity, low noise, diffeial input connection for Tektronix real-time Oscilloscopes. This probe also includes features that enable proper termination for high-speed serial buses. Tektronix diffeial SMA probes are designed for measuring diffeial signals in a 50 Ω signaling environment, providing the ability to convert from a diffeial SMA signal path to a single Oscilloscope input channel. Many of today's high-speed serial data standards employ diffeial signaling on multiple lanes that are challenging to measure simultaneously on a single Oscilloscope. The Tektronix Diffeial P7300 SMA Probes provide the ability to measure a high-speed diffeial signal on each channel of a multiple-channel Oscilloscope. The right Oscilloscope can simultaneously acquire up to four high-speed diffeial signals with the use of four diffeial SMA probes. As an added benefit, the SMA inputs on the probes connect to high-quality 50 Ω terminations that offer industry-leading return loss, a critical specification that is very important in compliance testing as frequencies increase. Tektronix Diffeial P7300 SMA Probes also provide a common mode DC voltage input to the termination network. The termination voltage can be supplied either externally by the user or internally by the Oscilloscope. In addition, there is also an automatic mode that senses the common mode voltage of the input signal and automatically sets the termination voltage to match. The Tektronix P7380SMA has an extended termination voltage range that makes it ideal for testing diffeial standards with high common mode voltages such as HDMI. Taken together, the high-speed diffeial amplifier, superior 50 Ω terminations, low return loss, flexible termination voltage, and quality phase-matched SMA cables create a world-class diffeial acquisition system when used with Tektronix Oscilloscopes.Features and Specifications of the Tektronix P7380SMA includes:
>8GHz bandwidth
50 Ω termination networkdiffeial SMA inputs
Industry-leading diffeial return loss and VSWR
High-bandwidth diffeial amplifier with excellent CMRR
Internal termination voltage generator can be controlled by the Oscilloscope, by an external source, or automatically by the probe
Phase-matched SMA cables (38 inch length, ?
Switchable gain for extended dynamic range
Auxiliary (inverted) output for use with spectrum Analysers, network Analysers, or as a clock recovery trigger source
