Tektronix P7506
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Rise Time | 58.3 ps |
| Input Impedance | 50 Ω |
| Dynamic Range | ±800 mV |
| Attenuation Ratio | 10X |
| Maximum Input Voltage | ±8 V (DC + Peak AC) |
| Cable Length | 1.2 m (3.9 ft) |
| Compatible Oscilloscopes | Tektronix DPO/DSA/MSO70000 Series, DPO7000 Series |
| Connector Type | TriMode™ Probe Interface |
| Operating Temperature | 0°C to +50°C |
Tektronix P7506 Options:
- P7506 - CA1 - Single Calibration or Functional Verification
- P7506 - C3 - Calibration Service 3 Years
- P7506 - C5 - Calibration Service 5 Years
- P7506 - D3 - Calibration Data Report 3 Years (with Option C3)
- P7506 - D5 - Calibration Data Report 5 Years (with Option C5)
- P7506 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- P7506 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- P7506 - R3 - Repair Service 3 Years
- P7506 - R5 - Repair Service 5 Years
- P7506 - R3PDW - Repair service coverage 3 years (includes product warranty period). 3-year period starts at time of customer instrument purchase
- P7506 - R5PDW - Repair service coverage 5 years (includes product warranty period). 5-year period starts at time of customer instrument purchase
| Model | P7506 |
|---|

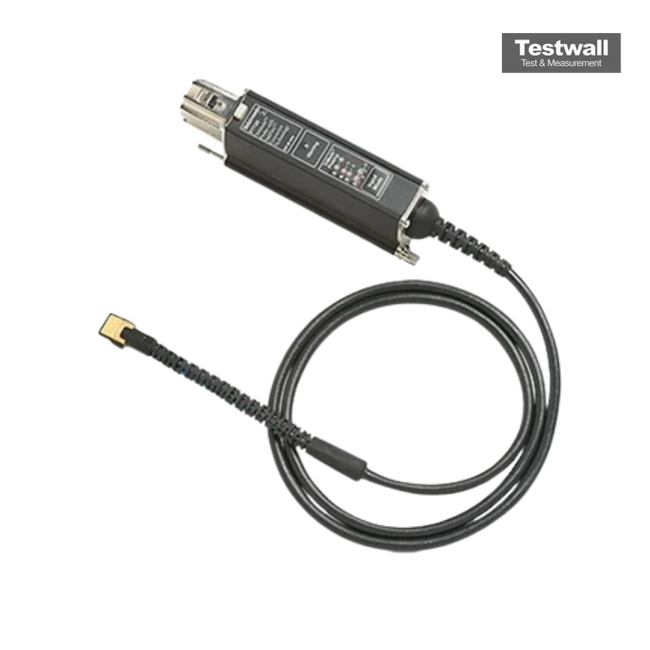

The Tektronix P7506 TriMode Differential Probe delivers 6 GHz signal fidelity with <75 ps (10-90%) and <50 ps (20-80%) rise time. It supports differential input ranges of ±0.75 V (5X) and ±1.75 V (12.5X), with selectable attenuation and a voltage window from +4.0 to –2.0 V. This probe also features an offset voltage range up to +3.4 V and DC differential resistance of 100 kΩ, providing nondestructive input range up to ±15 V.
Tektronix TriMode™ architecture allows differential, single-ended, and common-mode measurements without repositioning the probe, enhancing test flexibility and reducing setup time. Ideal for precise signal integrity analysis.
Testwall can supply the used Tektronix P7506, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P7506.
