Tektronix P7513A
| Attribute | Value |
|---|---|
| Bandwidth | 13 GHz |
| Rise Time | 26.9 ps |
| Input Impedance | 50 Ω |
| Dynamic Range | ±850 mV |
| Probe Type | TriMode Differential Probe |
| Compatible Oscilloscopes | Tektronix DPO/DSA/MSO70000 Series |
| Attenuation Ratio | 10X |
| Common Mode Rejection Ratio (CMRR) | >18 dB at 13 GHz |
| Connector Interface | TekConnect |
| Operating Temperature | 0°C to +50°C |
Tektronix P7513A Options:
- P7513A - CA1 - Single Calibration or Functional Verification
- P7513A - C3 - Calibration Service 3 Years
- P7513A - C5 - Calibration Service 5 Years
- P7513A - D3 - Calibration Data Report 3 Years (with Option C3)
- P7513A - D5 - Calibration Data Report 5 Years (with Option C5)
- P7513A - G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- P7513A - G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- P7513A - R3 - Repair Service 3 Years
- P7513A - R5 - Repair Service 5 Years
- P7513A - R3PDW - Repair service coverage 3 years (includes product warranty period). 3-year period starts at time of customer instrument purchase
- P7513A - R5PDW - Repair service coverage 5 years (includes product warranty period). 5-year period starts at time of customer instrument purchase
| Model | P7513A |
|---|

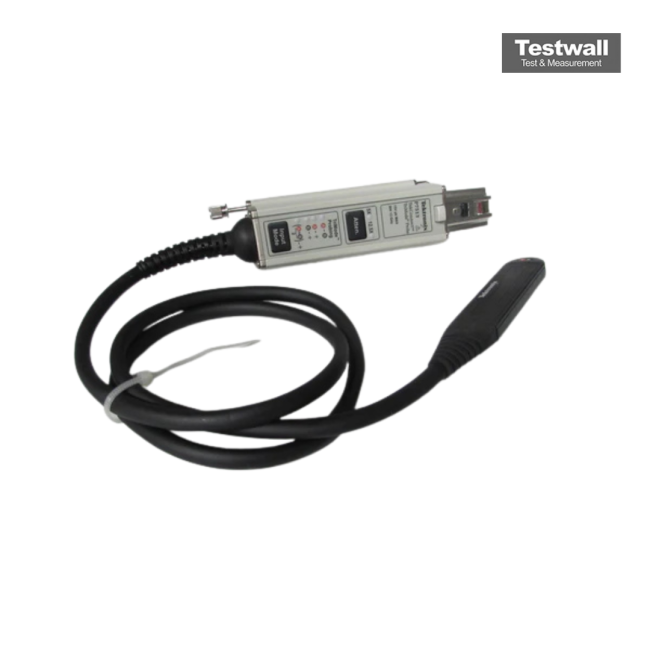

The Tektronix P7513A TriMode Differential Probe delivers maximum signal fidelity and connectivity for real-time oscilloscopes, with IBM SiGe technology enabling high bandwidth and low DUT loading. It supports seamless transitions between differential, single-ended, and common-mode measurements without moving the probe. The Long Reach Solder Tips (P75TLRST) make board-to-board access more efficient and are easily replaceable.
Engineered for signal integrity, the P7513A streamlines measurement workflows by reducing setup time and allowing mode changes through probe settings alone—ideal for high-performance environments.
Testwall can supply the used Tektronix P7513A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P7513A.
