Tektronix P76CA-292
| Attribute | Value |
|---|---|
| Bandwidth | 2.92 mm connector compatible, DC to high frequency |
| Connector Type | 2.92 mm (K-connector) |
| Compatibility | Compatible with Tektronix oscilloscopes and sampling modules |
| Impedance | 50 Ohm |
| Cable Length | Precision coaxial cable assembly |
| Frequency Range | DC to 40 GHz |
| Probe Type | Precision coaxial probe/adapter |
| VSWR | Low VSWR for minimal signal reflection |
| Operating Temperature | 0°C to +65°C |
| Application | High-frequency signal measurement and microwave testing |
Tektronix P76CA-292 Options:
- P76CA-292 - Opt. C3 - Calibration Service 3 Years
- P76CA-292 - Opt. C5 - Calibration Service 5 Years
- P76CA-292 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- P76CA-292 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- P76CA-292 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- P76CA-292 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- P76CA-292 - Opt. R3 - Repair Service 3 Years (including warranty)
- P76CA-292 - Opt. R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- P76CA-292 - Opt. R5 - Repair Service 5 Years (including warranty)
- P76CA-292 - Opt. R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
- P76CA-292 - P76CA-292C - 2.92 mm Coaxial Adapter with Cables
- P76CA-292 - P76CA-SMP - SMP Coaxial Adapter with Cables
- P76CA-292 - P76CA-BTI292 - Coaxial Adapter - P7600 tip interface to 2.92 mm connector
- P76CA-292 - P76TA - P7500 Tip Adapter
- P76CA-292 - P76PST - P7500 TriMode Performance Solder Tip
- P76CA-292 - P75TLRST - P7500 TriMode Long Reach Solder Tip
- P76CA-292 - 020-2936-xx - P7500 TriMode Resistor Solder Tip
- P76CA-292 - 020-2944-xx - P7500 TriMode Extended Resistor Solder Tip
- P76CA-292 - 020-3118-xx - Solder Tip Ramps, Kit of 25
- P76CA-292 - 006-8237-xx - Adhesive Tip Tape, Strip of 10
- P76CA-292 - 067-2431-xx - Deskew Fixture
- P76CA-292 - 003-1934-xx - SMPM Bullet Removal Tool
- P76CA-292 - 020-3105-xx - SMPM Replacement Bullet Contacts (package of 4)
- P76CA-292 - 003-1896-xx - G3PO Bullet Removal Tool
- P76CA-292 - 013-0359-xx - G3PO Replacement Bullet Contacts (package of 4)
- P76CA-292 - 020-2754-xx - Wire Kit (package of 3 bobbins)
- P76CA-292 - 020-2937-xx - Replacement Resistor Kit
| Model | P76CA-292 |
|---|

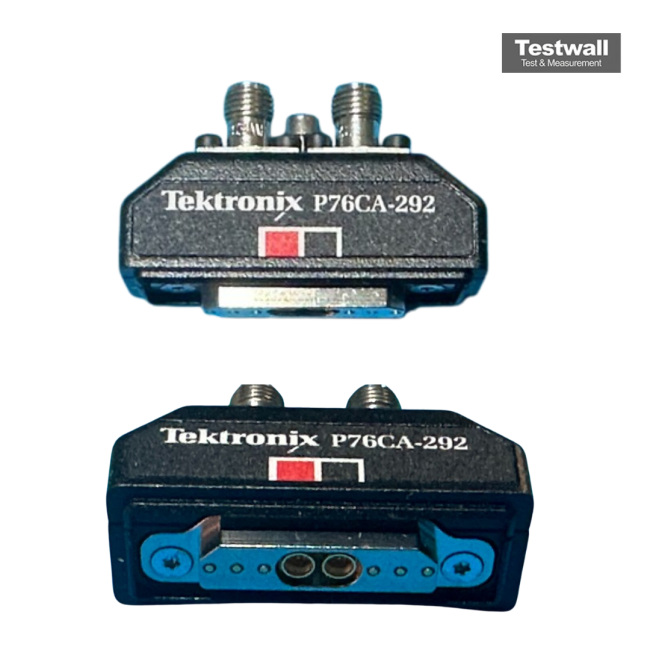

The Tektronix P76CA-292 is a 33 GHz Bandwidth Coaxial Adapter featuring 2.92 mm (Female) connectors and calibrated input for optimal performance with standard or custom cables. It supports attenuation settings of 0.25X to 4X, 1.2 Vpp single-ended and 2.0 Vpp differential input range, with a DC input resistance of 50 Ω ±2 Ω and high return loss across a wide frequency range.
With a -4 V to +4 V voltage window and >40 dB CMRR at DC, the adapter ensures precision in demanding signal applications, making it ideal for maintaining bandwidth in low-skew cable configurations.
Testwall can supply the used Tektronix P76CA-292, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P76CA-292.
