Tektronix P76CA-292C
| Attribute | Value |
|---|---|
| Compatibility | Tektronix TDS7000 Series, CSA7000 Series, and TDS6000 Series Oscilloscopes |
| Bandwidth | 6 GHz |
| Input Impedance | 50 Ω |
| Attenuation Ratio | 10X |
| Cable Length | 292 cm (approximately 9.5 ft) |
| Connector Type | SMA Connector |
| Probe Type | Single-Ended Active Probe |
| Dynamic Range | ±0.6 V |
| Rise Time | ≤ 58 ps |
| Operating Temperature | 0°C to +50°C |
Tektronix P76CA-292C Options:
- P76CA-292C - Opt. C3 - Calibration Service 3 Years
- P76CA-292C - Opt. C5 - Calibration Service 5 Years
- P76CA-292C - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- P76CA-292C - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- P76CA-292C - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- P76CA-292C - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- P76CA-292C - Opt. R3 - Repair Service 3 Years (including warranty)
- P76CA-292C - Opt. R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- P76CA-292C - Opt. R5 - Repair Service 5 Years (including warranty)
- P76CA-292C - Opt. R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | P76CA-292C |
|---|

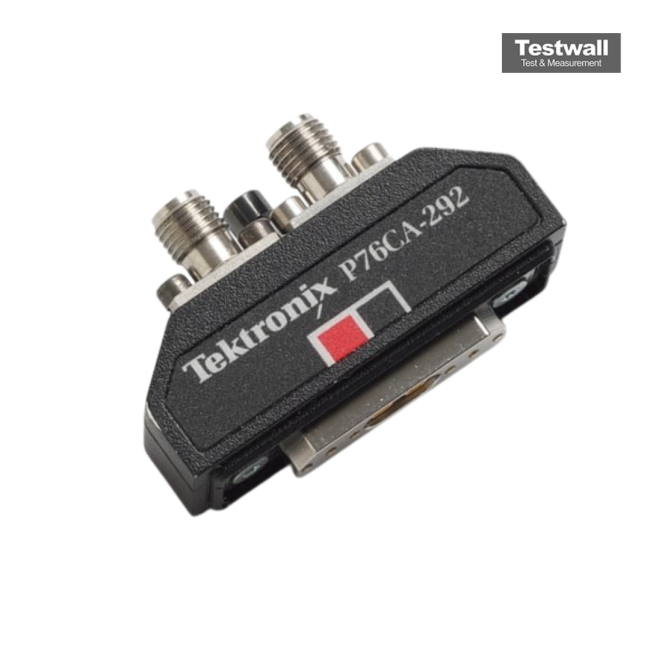

The Tektronix P76CA-292C is a high-performance TriMode adapter supporting 33 GHz bandwidth and the lowest system noise in combination with MSO/DPO70000DX and DPO/DSA70000D Series oscilloscopes. It enables seamless switching between differential, single-ended, and common-mode measurements with remote head design and TekConnect® interface for precise and efficient probing.
Compatible with 2.92 mm and SMP coaxial adapters and P7500 Series tips, the P76CA-292C ensures bandwidth integrity through probe-specific DSP filters, ideal for testing MIPI M-PHY, PCIe, HDMI, and other high-speed serial standards.
Testwall can supply the used Tektronix P76CA-292C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P76CA-292C.
