Tektronix P76TA
| Attribute | Value |
|---|---|
| Bandwidth | 75 MHz |
| Attenuation Ratio | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 12 pF |
| Maximum Input Voltage | 300 V RMS (CAT II) |
| Cable Length | 1.2 m (4 ft) |
| Rise Time | ≤4.7 ns |
| Compensation Range | 10 pF to 35 pF |
| Connector Type | BNC |
| Compatible Oscilloscopes | Tektronix TDS and TBS Series Oscilloscopes |
Tektronix P76TA Options:
- P76TA - Opt. C3 - Calibration Service 3 Years
- P76TA - Opt. C5 - Calibration Service 5 Years
- P76TA - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- P76TA - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- P76TA - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- P76TA - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- P76TA - Opt. R3 - Repair Service 3 Years (including warranty)
- P76TA - Opt. R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- P76TA - Opt. R5 - Repair Service 5 Years (including warranty)
- P76TA - Opt. R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | P76TA |
|---|

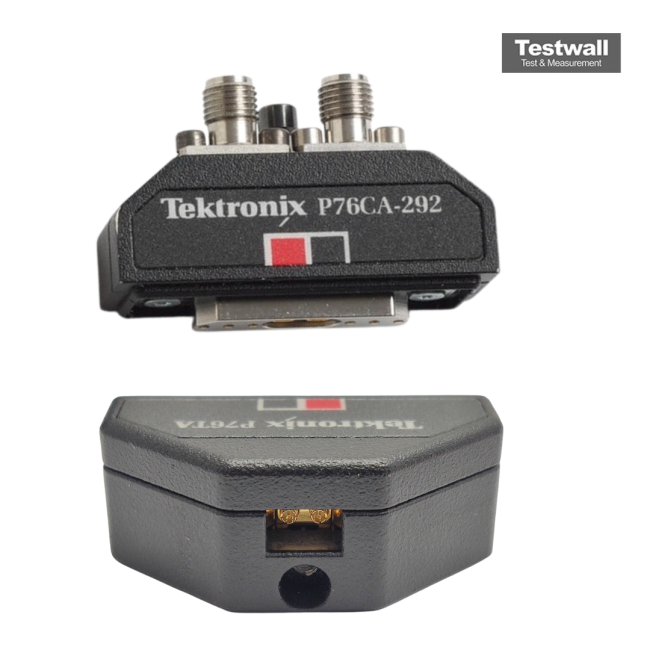

The Tektronix P76TA adapter supports 33 GHz bandwidth and integrates with P7600 Series TriMode probes and MSO/DPO70000DX & DPO/DSA70000D oscilloscopes for low-noise, high-precision signal analysis. It enables TriMode measurement—differential, single-ended, and common mode—with a remote head design and TekConnect® interface for enhanced accessibility and usability.
Designed for advanced signal fidelity, P76TA accommodates 2.92 mm and SMP coaxial adapters, and is compatible with P7500 Series TriMode solder-in tips with automatic DSP filter application.
Testwall can supply the used Tektronix P76TA, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P76TA.
