Tektronix RF Scout
| Attribute | Value |
|---|---|
| Frequency Range | 100 MHz to 6 GHz |
| Dynamic Range | Up to 120 dB |
| Resolution Bandwidth (RBW) | 10 Hz to 3 MHz |
| Display Average Noise Level (DANL) | -163 dBm/Hz (typical) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +20 dBm (continuous) |
| Connectivity | USB 3.0, Wi-Fi, Bluetooth |
| Power Supply | USB-powered, compatible with standard USB 3.0 host |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions (W x H x D) | Compact handheld form factor, approximately 127 mm x 76 mm x 25 mm |
| Model | RF |
|---|

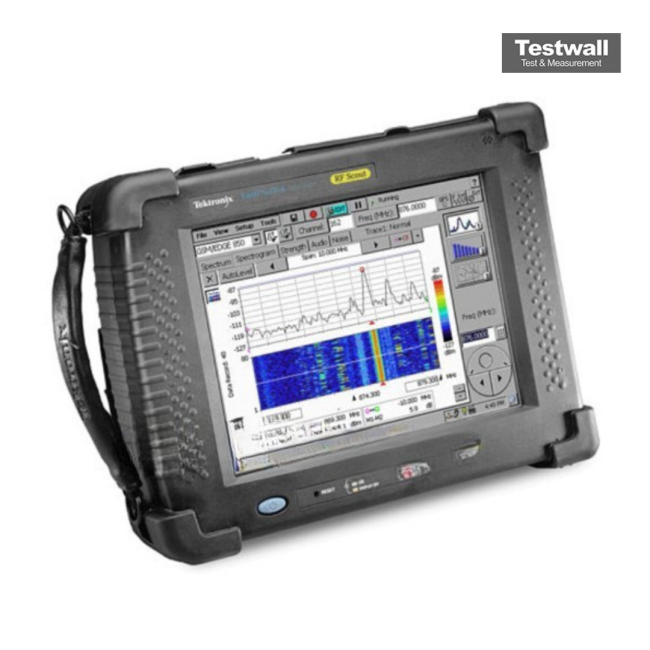

The Tektronix RF Scout is a handheld spectrum analyzer designed for efficient interference hunting. It features a high-sensitivity analyzer with preamp, manual and coupled controls, dual traces, seven markers, channel tables, and intuitive touchscreen controls for rapid access. Users can place markers directly on signals to quickly diagnose RF issues, even intermittent ones.
It supports AM/FM demodulation, code domain measurements for cdma2000, W-CDMA, EV-DO, and includes a mapping system for color-coded field analysis. Multi-signal acquisition enables efficient troubleshooting across locations.
Testwall can supply the used Tektronix RF Scout, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RF Scout.
