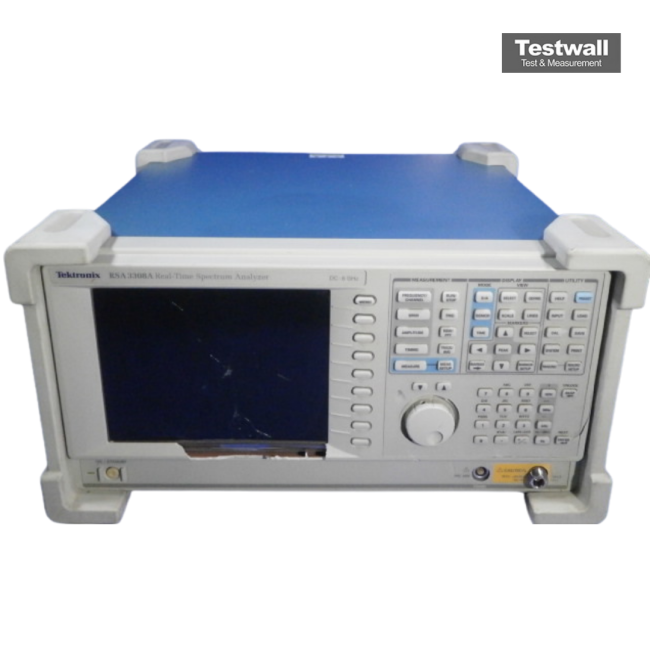

Tektronix RSA3308A
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 8 GHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical) at 1 GHz |
| Phase Noise | -106 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) |
| Real-Time Bandwidth | 40 MHz |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Dynamic Range | 78 dB (third-order dynamic range, typical) |
| Display | 10.4-inch color TFT LCD |
Tektronix RSA3308A Options:
- RSA3308A - Opt. 1R - Rackmount
- RSA3308A - Opt. 1A - External preamp, 20 dB gain to 3 GHz
- RSA3308A - Opt. 02 - 256 MB Data Memory with Frequency Mask Trigger and Power (Span BW) Trigger
- RSA3308A - Opt. 03 - Differential IQ Inputs
- RSA3308A - Opt. 21 - General-purpose Digital Modulation Analysis
- RSA3308A - Opt. A0 - North America power
- RSA3308A - Opt. A1 - Universal Euro power
- RSA3308A - Opt. A2 - United Kingdom power
- RSA3308A - Opt. A3 - Australia power
- RSA3308A - Opt. A4 - 240 V, North America power
- RSA3308A - Opt. A5 - Switzerland power
- RSA3308A - Opt. A6 - Japan power
- RSA3308A - Opt. A10 - China power
- RSA3308A - Opt. A99 - No power cord or AC adapter
- RSA3308A - Opt. L0 - English User/Programmer's Manual
- RSA3308A - Opt. L5 - Japanese User/Programmer's Manual
- RSA3308A - Opt. C3 - Calibration Service 3 years
- RSA3308A - Opt. C5 - Calibration Service 5 years
- RSA3308A - Opt. D1 - Calibration Data Report
- RSA3308A - Opt. D3 - Calibration Data Report 3 years (with Opt. C3)
- RSA3308A - Opt. D5 - Calibration Data Report 5 years (with Opt. C5)
- RSA3308A - Opt. R3 - Repair Service 3 years
- RSA3308A - Opt. R5 - Repair Service 5 years
- RSA3308A - RSA3UP 21 - General-purpose Digital Modulation Analysis Upgrade (customer installable)
- RSA3308A - RSA3UP IF - Installation for RSA3UP 21
| Model | RSA3308A |
|---|
The Tektronix RSA3308A is a DC-8 GHz Real-Time Spectrum Analyzer featuring a frequency range from DC to 8 GHz, with ±1 x 10⁻⁷/year aging and high stability across 10–40 °C. It supports 16.384 Msamples memory depth, 15 MHz bandwidth, modulation analysis (AM, FM, ASK, FSK, PM), and advanced triggering modes including IF level, frequency mask, and power-based triggers.
Ideal for transient RF signal capture, modulation quality checks, EMI diagnostics, and vector signal analysis across various applications including VCO design and spectrum monitoring.
Testwall can supply the used Tektronix RSA3308A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA3308A.
