Tektronix WFM5000
| Attribute | Value |
|---|---|
| Display | 5.6-inch high-resolution LCD with 640 x 480 resolution |
| Video Standards Supported | SD, ED, and HD video formats including 480i, 576i, 720p, 1080i, and 1080p |
| Input Channels | 4 x SDI inputs (BNC connectors) with loop-through capability |
| Audio Monitoring | Embedded audio support for up to 16 channels of AES/EBU and analog audio monitoring |
| Waveform Display Modes | Waveform, vector, parade, overlay, and picture display modes |
| Signal Interface | Serial Digital Interface (SDI) compliant with SMPTE 259M, SMPTE 292M, and SMPTE 424M standards |
| Gamut Monitoring | Diamond and split-diamond gamut display for composite and component gamut error detection |
| Power Requirements | 100–240 VAC, 50/60 Hz, with optional DC power input for field use |
| Physical Dimensions | Approximately 8.5 in. (W) x 5.9 in. (H) x 5.5 in. (D); designed for portable and rack-mount use |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) operating range; –20°C to 60°C storage range |
| Model | WFM5000 |
|---|

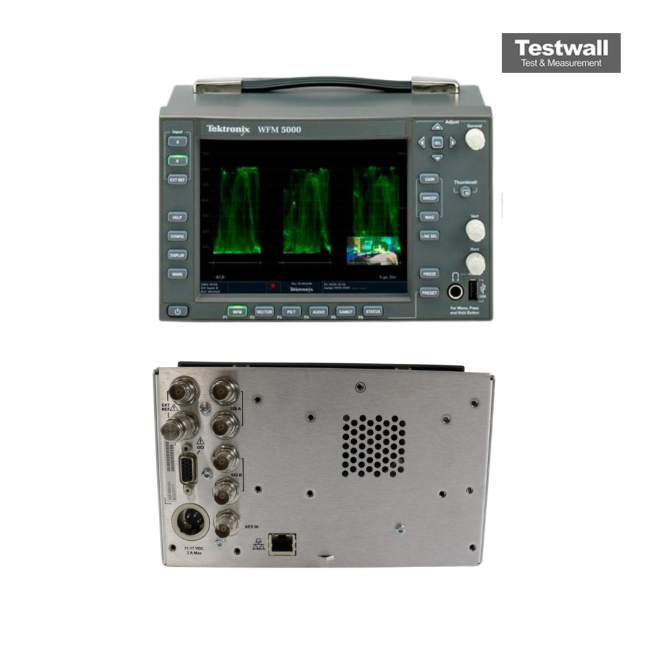

The Tektronix WFM5000 HD / SD-SDI Compact Waveform Monitor offers precision video signal analysis for both high-definition and standard-definition formats. Its compact design integrates essential features like waveform, vector, and picture display, supporting a wide range of SDI formats for broadcast and production environments. Advanced tools ensure accurate measurements and efficient signal integrity monitoring.
Ideal for live production, post-production, and quality control, the WFM5000 delivers uncompromised signal monitoring in a portable form. Its intuitive interface and multi-format support streamline workflow efficiency.
Testwall can supply the used Tektronix WFM5000 HD / SD-SDI Compact Waveform Monitor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM5000 HD / SD-SDI Compact Waveform Monitor.
