Tektronix RTX130B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz – 3 GHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical) at 1 GHz |
| Phase Noise | -100 dBc/Hz at 1 GHz, 10 kHz offset (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Maximum Input Power | +30 dBm (1 W) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Dynamic Range | Up to 100 dB |
| Display | 10.1-inch touchscreen LCD display |
| Connectivity | USB, LAN (Ethernet), HDMI |
| Power Supply | AC 100–240 V, 50/60 Hz; DC 12 V battery operation supported |
Tektronix RTX130B Options:
- RTX130B - M1 - DVB-C/ITU-T J.83 Annex A Modulation Mode
- RTX130B - M2 - ITU-T J.83 Annex B Modulation Mode
- RTX130B - M3 - ITU-T J.83 Annex C Modulation Mode
- RTX130B - M4 - ATSC Modulation Mode
- RTX130B - SC - Scheduler
- RTX130B - C3 - Calibration Service 3 Years
- RTX130B - C5 - Calibration Service 5 Years
- RTX130B - D1 - Calibration Data Report
- RTX130B - D3 - Calibration Data Report 3 Years (with Opt. C3)
- RTX130B - D5 - Calibration Data Report 5 Years (with Opt. C5)
- RTX130B - R3 - Repair Service 3 Years
- RTX130B - R5 - Repair Service 5 Years
- RTX130B - A0 - U.S. plug, 115 V, 60 Hz
- RTX130B - A1 - Euro plug, 220V, 50 Hz
- RTX130B - A2 - U.K. plug, 240V, 50 Hz
- RTX130B - A3 - Australia plug, 240V, 50 Hz
- RTX130B - A4 - N. America plug, 240V, 50 Hz
- RTX130B - A5 - Switzerland plug, 220V, 50 Hz
- RTX130B - A6 - Japan plug, 100 V, 110/120 Volt, 60 Hz
- RTX130B - A10 - China plug, 50 Hz
- RTX130B - A99 - No power cord
- RTX130B - L0 - English manual
- RTX130B - L5 - Japanese manual
| Model | RTX130B |
|---|

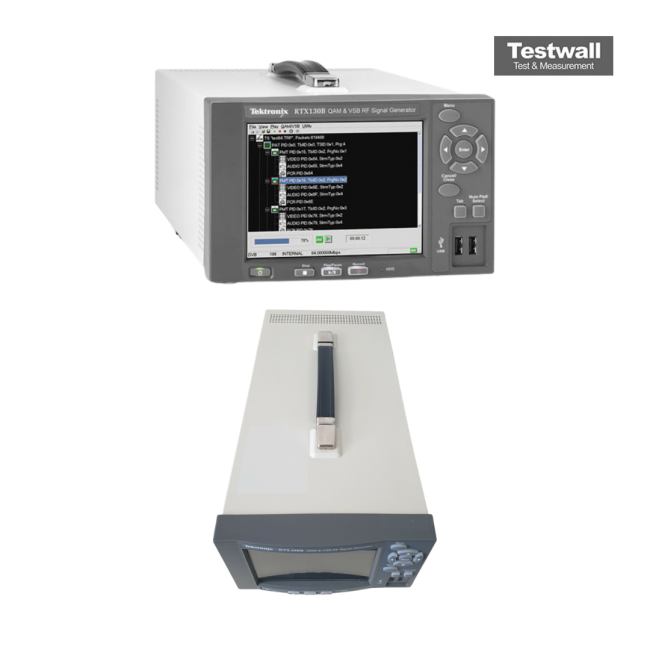

The Tektronix RTX130B is a QAM & VSB MPEG RF Signal Generator, integrating a QAM/VSB modulator, upconverter, and MPEG generator into a compact unit. It supports DVB-C/ITU-T J.83 Annex A/B/C and VSB, ideal for generating RF-modulated signals in both cable and terrestrial broadcasting environments. The device offers real-time timestamp updates, USB and GbE interfaces for flexible transport stream management, and color-coded transport stream component displays for clarity.
Perfect for MPEG-based digital TV and set-top box development, the RTX130B enables efficient design testing, stress analysis, and transport stream monitoring with Tektronix tools. Ethernet-based SCPI remote control simplifies automation.
Testwall can supply the used Tektronix RTX130B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RTX130B.
