Tektronix WFM7100
HD-capable, performance monitor
Raster display with 1920 x 1080 resolution LCD monitor support via DVI-I output Display Type
SD, HD, and 3 Gb/s HD-SDI signals including SMPTE 259M, 292M, 296M, and 424M Video Standards Supported
SD-SDI (270 Mb/s), HD-SDI (1.485 Gb/s), and 3G-SDI (2.97 Gb/s) Input Signal Formats
4 inputs with simultaneous monitoring capability Number of SDI Inputs
Supports embedded audio (SMPTE 272M, 299M), AES/EBU, and analog audio monitoring Audio Monitoring
| Attribute | Value |
|---|---|
| Display Type | Raster display with 1920 x 1080 resolution LCD monitor support via DVI-I output |
| Video Standards Supported | SD, HD, and 3 Gb/s HD-SDI signals including SMPTE 259M, 292M, 296M, and 424M |
| Input Signal Formats | SD-SDI (270 Mb/s), HD-SDI (1.485 Gb/s), and 3G-SDI (2.97 Gb/s) |
| Number of SDI Inputs | 4 inputs with simultaneous monitoring capability |
| Audio Monitoring | Supports embedded audio (SMPTE 272M, 299M), AES/EBU, and analog audio monitoring |
| Waveform Display Modes | Waveform, Vector, Parade, Overlay, Picture, Gamut, and Datalist display modes |
| Reference Input | External reference input supporting Black Burst and Tri-Level Sync signals |
| Connectivity/Interface | Ethernet (RJ-45), USB, DVI-I video output, GPIO, and remote control capability |
| Power Requirements | 100–240 VAC, 50/60 Hz, maximum 75 W power consumption |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) with storage range of -20°C to 60°C |
Tektronix WFM7100 Options:
- WFM7100 - CPS - Composite Analog Monitoring; 2 Composite Analog Inputs
- WFM7100 - SD - Standard Definition Monitoring; 2 SD SDI Inputs
- WFM7100 - HD - High Definition Monitoring
- WFM7100 - DS - Audio Monitoring for AES/EBU formats (embedded and AES/EBU inputs)
- WFM7100 - AD - DS capabilities plus Analog Audio Monitoring
- WFM7100 - DD - AD capabilities plus Monitoring for Dolby Digital (AC-3) decode
- WFM7100 - DDE - DD capabilities plus Dolby E decode monitoring
- WFM7100 - EYE - Eye pattern and basic jitter measurement
- WFM7100 - PHY - EYE capabilities plus advanced physical layer measurements; jitter waveform and automated eye measurements
- WFM7100 - DAT - Data analysis capabilities
- WFM7100 - A0 - North America power cord
- WFM7100 - A1 - Universal Euro power cord
- WFM7100 - A2 - United Kingdom power cord
- WFM7100 - A3 - Australia power cord
- WFM7100 - A4 - 240 V, North America power cord
- WFM7100 - A5 - Switzerland power cord
- WFM7100 - A6 - Japan power cord
- WFM7100 - A10 - China power cord
- WFM7100 - A99 - No power cord or AC adapter
- WFM7100 - L0 - English manual
- WFM7100 - L5 - Japanese manual
- WFM7100 - L7 - Simplified Chinese manual
- WFM7100 - CA1 - Single Calibration
- WFM7100 - C3 - Calibration Service 3 Years
- WFM7100 - C5 - Calibration Service 5 Years
- WFM7100 - D1 - Calibration Data Report
- WFM7100 - D3 - Calibration Data Report 3 years (with Option C3)
- WFM7100 - D5 - Calibration Data Report 5 years (with Option C5)
- WFM7100 - R3 - Repair Service 3 years (including warranty)
- WFM7100 - R5 - Repair Service 5 years (including warranty)
- WFM7100 - NRC - No portable or rack cabinet
- WFM7100 - 01 - Portable cabinet
- WFM7100 - 02 - Dual rack cabinet (same as WFM7F05 option NN)
- WFM7100 - 05 - Dual rack cabinet (same as WFM7F05 option ON)
- WFM7100 - 06 - Filler panel for dual rack cabinet
- WFM7100 - 07 - Drawer for dual rack cabinet
- WFM7100 - 62 - Analog audio breakout cable
| Model | WFM7100 |
|---|

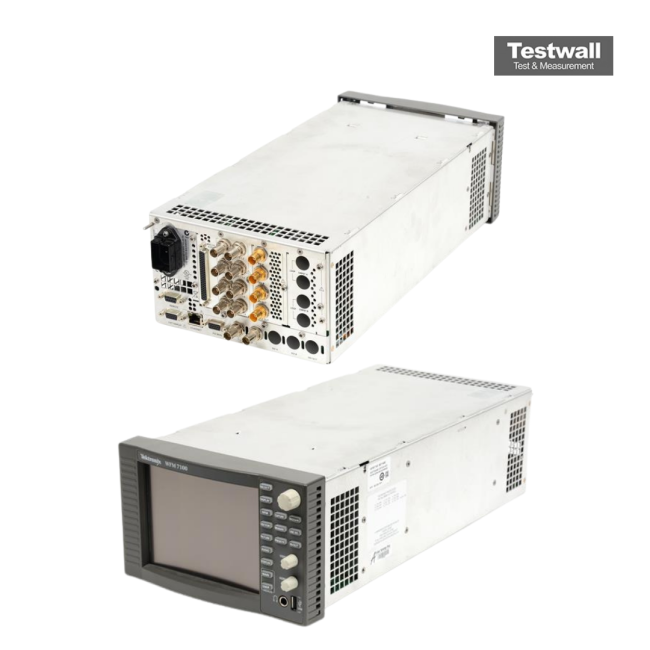

The Tektronix WFM7100 is a high-end waveform monitor for SD and HD video, offering detailed signal analysis through SD-SDI, HD-SDI, and optional composite inputs. It features embedded and AES/EBU audio analysis, multiple I/O ports, and advanced synchronization via genlock. Its LCD interface and USB support make it user-friendly and versatile.
Designed for video professionals, the WFM7100 supports gamut compliance, lip sync checks, and loudness monitoring, making it ideal for broadcast environments and production studios.
Testwall can supply the used Tektronix WFM7100, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM7100.
