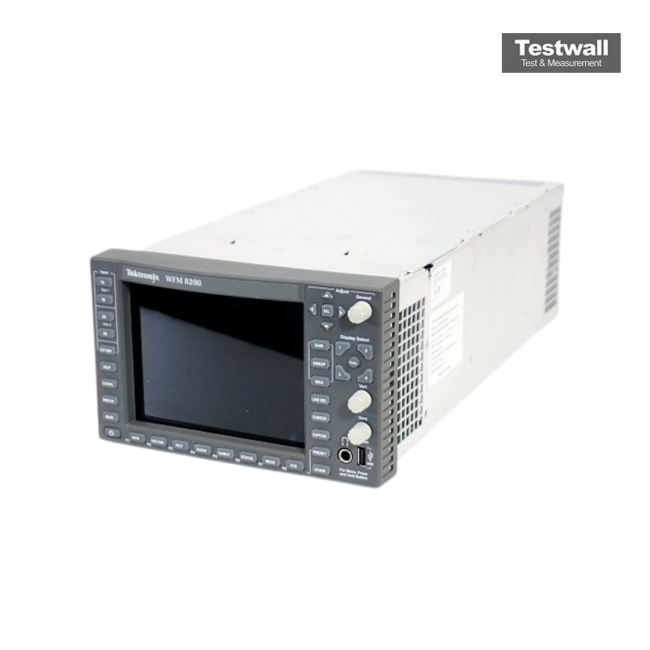

Tektronix WFM8200
| Attribute | Value |
|---|---|
| Form Factor | Portable/Benchtop Waveform Monitor |
| Supported Signal Formats | SD, HD, 3 Gb/s SDI (SMPTE 424M), Dual Link HD-SDI |
| Number of SDI Inputs | 2 x SDI inputs with passive loop-through |
| Display | 6.5-inch high-resolution color LCD display |
| Audio Monitoring | Supports embedded SDI audio, AES/EBU, and analog audio monitoring |
| Measurement Capabilities | Waveform, Vector, Parade, Gamut, Datalist, Event Logging, and Closed Caption monitoring |
| Eye and Jitter Analysis | Optional SDI physical layer (eye diagram and jitter) analysis available |
| Reference Input | External reference input supporting Black Burst and Tri-Level Sync |
| Connectivity/Interfaces | Ethernet (RJ-45), USB, VGA output for external monitor |
| Power Requirements | 100–240 V AC, 50/60 Hz, with optional battery power capability |
Tektronix WFM8200 Waveform Monitor Options:
- WFM8200 - 2SDI - Additional Sdi Module
- WFM8200 - 3D - 3D Video Monitoring
- WFM8200 - 3G - Support For 3G-Sdi Signals
- WFM8200 - 4K - Adds Support For 4K/Uhdtv1 Signal Formats (Requires Options 3G And 2Sdi)
- WFM8200 - 62 - Analog Audio Breakout Cable
- WFM8200 - AD - Analog And Digital Audio Monitoring
- WFM8200 - AVD - Adds Support For Out-Of-Service A/V Delay Measurement. Option Ad Or Dpe Required
- WFM8200 - CPS - Support For Composite Analog Video Monitoring
- WFM8200 - DAT - Add Advanced 3G / Dual-Link / Hd / Sd-Sdi Data Analyzer (Requires 3G For 3G-Sdi Support)
- WFM8200 - DPE - Analog And Digital Audio Monitoring Inc Dolby E/D/Digital Plus
- WFM8200 - EYE - Eye Pattern Display And Jitter Measurement
- WFM8200 - GEN - 3G/Hd/Sd-Sdi Color Bar And Pathological Signal Generation Capability
- WFM8200 - PHY3 - Physical Layer Measurement Package
- WFM8200 - PROD - Advanced Gamut Monitoring Package
- WFM8200 - WFM7F02 - Portable Cabinet Includes Handle, Feet, Tilt Bail, And Front-Panel Cover
| Model | WFM8200 |
|---|
The Tektronix WFM8200 Waveform Monitor delivers advanced signal monitoring capabilities for broadcast and production environments. Featuring comprehensive waveform, vector, and picture display modes, it supports multiple SD, HD, and 3G-SDI formats with precision measurements. Its high-resolution display and customizable layouts enhance operational efficiency, while integrated error detection ensures reliable signal integrity analysis.
Ideal for post-production, live broadcasting, and content quality control, it offers real-time monitoring and flexible configuration options. Its compact form factor ensures easy integration into any workflow setup.
Testwall can supply the used Tektronix WFM8200 Waveform Monitor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM8200 Waveform Monitor.
