Tektronix SD22
| Attribute | Value |
|---|---|
| Bandwidth | 1.2 GHz |
| Rise Time | 290 ps |
| Input Impedance | 50 Ω |
| Dynamic Range | ±2 V |
| Sensitivity Range | 10 mV/div to 200 mV/div |
| Offset Range | ±1 V |
| VSWR | ≤ 1.5:1 at 1 GHz |
| Connector Type | SMA |
| Compatible Systems | Tektronix 11000 Series Mainframes |
| Number of Channels | 2 |
| Model | SD22 |
|---|

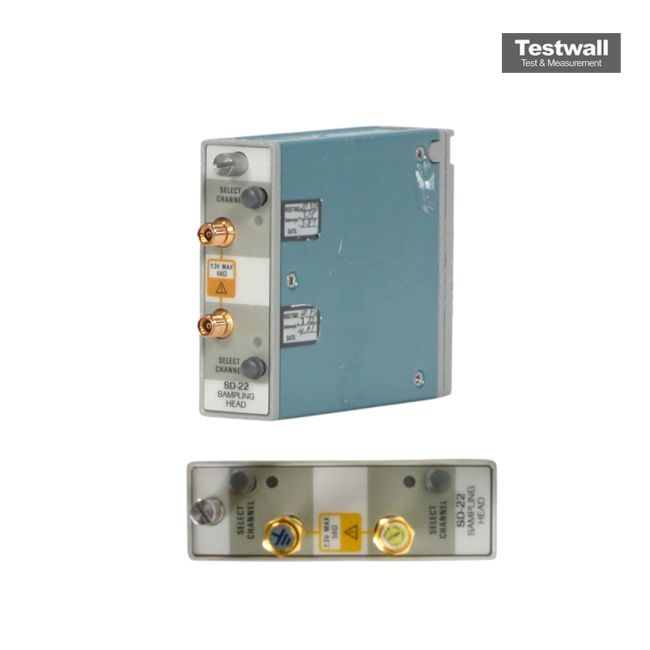

The Tektronix SD22 is a dual-channel 12.5GHz sampling head engineered for low-noise environments in digital communications, digital design, debugging, and high-throughput ATE systems. It features a 28 ps acquisition rise time and a typical displayed noise of 450 µV RMS, which reduces to 180 µV RMS with smoothing.
Ideal for high-speed signal analysis, the SD22 ensures accurate performance in demanding test setups, thanks to its high bandwidth and minimal noise interference.
Testwall can supply the used Tektronix SD22, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SD22.
