Tektronix TDS6804B
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Sample Rate | 25 GS/s on 2 channels, 12.5 GS/s on 4 channels |
| Number of Channels | 4 |
| Record Length | Up to 25 million points per channel |
| Vertical Resolution | 8 bits (11 bits with Hi Res mode) |
| Rise Time | 53.3 ps (typical) |
| Input Impedance | 50 Ω |
| Time Base Range | 10 ps/div to 10 s/div |
| Display | 10.4-inch color LCD display |
| Connectivity | USB, GPIB, LAN (10/100Base-T Ethernet) |
Tektronix TDS6804B Options:
- TDS6804B - A0 - North America power
- TDS6804B - A1 - Universal EURO power
- TDS6804B - A2 - United Kingdom power
- TDS6804B - A3 - Australia power
- TDS6804B - A5 - Switzerland power
- TDS6804B - A6 - Japan power
- TDS6804B - A10 - China power
- TDS6804B - A99 - No power cord or AC adapter
- TDS6804B - L5 - Japanese manual
- TDS6804B - L7 - Simplified Chinese manual
- TDS6804B - L10 - Russian manual
- TDS6804B - FHD - Front-panel 40 GB removable hard disk drive, replaces front panel CD-R/W which is moved to the back
- TDS6804B - 1K - K4000 Oscilloscope Cart
- TDS6804B - 1R - Rackmount Kit
- TDS6804B - C3 - Calibration Service 3 Years
- TDS6804B - C5 - Calibration Service 5 Years
- TDS6804B - D1 - Calibration Data Report
- TDS6804B - D3 - Calibration Data Report 3 Years (requires Option C3)
- TDS6804B - D5 - Calibration Data Report 5 Years (with Option C5)
- TDS6804B - R3 - Repair Service 3 Years
- TDS6804B - R5 - Repair Service 5 Years
- TDS6804B - 2M - 8 M samples on all channels
- TDS6804B - 3M - 16 M samples on all channels
- TDS6804B - 4M - 32 M samples on all channels
- TDS6804B - CP2 - TDSCPM2 ANSI/ITU Telecom pulse compliance testing software (requires Option SM)
- TDS6804B - DVI - TDSDVI DVI compliance test solution
- TDS6804B - ET3 - TDSET3 Ethernet compliance test software
- TDS6804B - HT3 - HDMI compliance test software
- TDS6804B - JA3 - TDSJIT3 v2.0 Advanced jitter analysis software
- TDS6804B - JE3 - TDSJIT3 v2.0 Essentials jitter analysis software
- TDS6804B - J2 - TDSDDM2 Disk drive analysis software
- TDS6804B - PW3 - TDSPWR3 Power measurement and analysis software
- TDS6804B - RTE - TDSRT-Eye Serial Data Compliance Analysis Software
- TDS6804B - RJA - Software Bundle of TDSJIT3 v2.0, TDSRT-Eye, and Protocol Trigger and Decode
- TDS6804B - RSA - Software Bundle of TDSJIT3 v2.0, RT-Eye, Serial Trigger, Protocol Trigger and Decode, and Serial Mask testing
- TDS6804B - PCE - PCI Express Compliance Module for Option RTE (requires Option RTE)
- TDS6804B - PTD - Protocol Trigger and Decode (provides protocol decode on all models, requires Opt. ST for protocol triggering on TDS6000C series only)
- TDS6804B - IBA - InfiniBand Compliance Module for Option RTE
- TDS6804B - SM - Serial communications mask testing (enables hardware clock recovery)
- TDS6804B - SST - SATA and SAS Analysis Software Module for Option RTE
- TDS6804B - ST - Serial pattern trigger (enables hardware clock recovery)
- TDS6804B - USB - TDSUSBS USB2.0 Compliance test software only (requires TDSUSBF test fixture)
| Model | TDS6804B |
|---|

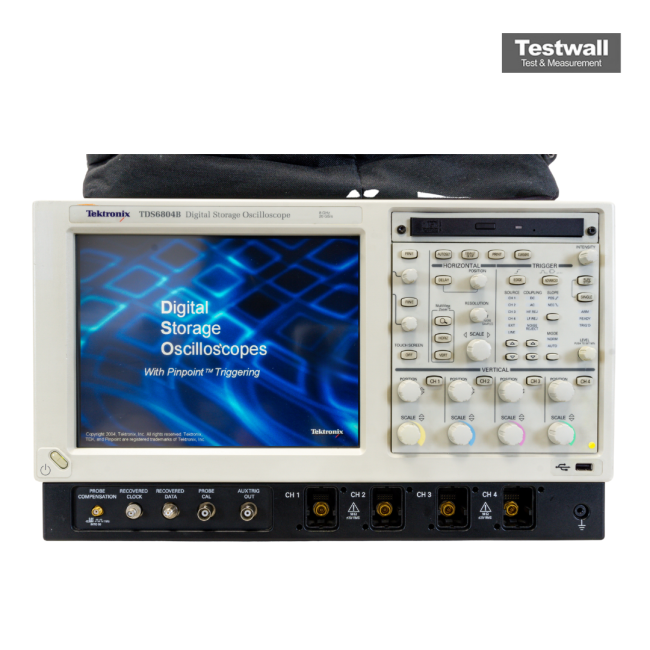

The Tektronix TDS6804B Oscilloscope delivers advanced 8 GHz bandwidth across four synchronized channels, enhanced by digital signal processing (DSP) for high-precision signal fidelity. It supports 20 GS/s sampling and 2Mpts/channel memory in 4-channel mode. Users can toggle DSP to access the true 7 GHz analog bandwidth, enabling unmatched measurement accuracy.
Optimized for high-speed serial data analysis, it’s ideal for debugging multi-lane serial interfaces. With simultaneous four-lane analysis, high-resolution XGA display, USB2.0, CD-R/W, and network integration, it ensures robust signal diagnostics.
Testwall can supply the used Tektronix TDS6804B Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS6804B Oscilloscope.
