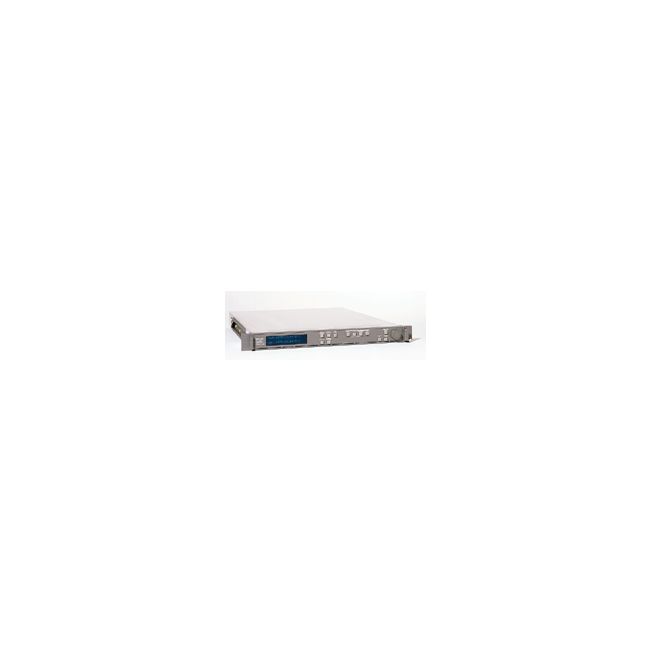

Tektronix SPG1000
Multi-Format HDTV Sync Generator
SD, HD, 3G-SDI, HDR, HFR, IP (ST 2022-6, ST 2110) Signal Formats Supported
Up to 4 independent SDI outputs Video Output Channels
Black Burst and Tri-Level Sync Reference Signal Output
Embedded audio, AES/EBU audio generation Audio Support
Color bars, pathological, zone plate, and custom patterns Test Patterns
| Attribute | Value |
|---|---|
| Signal Formats Supported | SD, HD, 3G-SDI, HDR, HFR, IP (ST 2022-6, ST 2110) |
| Video Output Channels | Up to 4 independent SDI outputs |
| Reference Signal Output | Black Burst and Tri-Level Sync |
| Audio Support | Embedded audio, AES/EBU audio generation |
| Test Patterns | Color bars, pathological, zone plate, and custom patterns |
| Network Interface | 10/100/1000 Ethernet for remote control and IP signal generation |
| Timing and Synchronization | GPS/GNSS input for precise timing and synchronization |
| Control Interface | Front panel controls, Web browser GUI, SNMP, SCPI remote control |
| Power Requirements | 100–240 VAC, 50/60 Hz, auto-ranging |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Model | SPG1000 |
|---|
The Tektronix SPG1000 is a multi-format HDTV sync and test signal generator designed for demanding broadcast and production workflows. It supports master/slave sync generation, internal genlock, and seamless NTSC, PAL, and trilevel transitions.
Featuring a comprehensive suite of test patterns and precise timing tools, the SPG1000 ensures robust performance with external clock, frame-reset inputs, and remote-control capabilities.
Testwall can supply the used Tektronix SPG1000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SPG1000.
