Tektronix TPG20
2 independent pattern generator channels Output Channels
20 Mb/s per channel Maximum Data Rate
Adjustable from 0 V to 3.3 V (High Level), 0 V to -2 V (Low Level) Output Voltage Levels
Up to 8,192 bits per channel Pattern Length
50 Ω Output Impedance
| Attribute | Value |
|---|---|
| Output Channels | 2 independent pattern generator channels |
| Maximum Data Rate | 20 Mb/s per channel |
| Output Voltage Levels | Adjustable from 0 V to 3.3 V (High Level), 0 V to -2 V (Low Level) |
| Pattern Length | Up to 8,192 bits per channel |
| Output Impedance | 50 Ω |
| Clock Source | Internal or external clock reference |
| Trigger Input | External trigger input for synchronization |
| Interface/Connectivity | GPIB (IEEE-488) interface for remote control |
| Rise/Fall Time | Less than 20 ns typical |
| Power Requirements | 100–240 V AC, 50/60 Hz, approximately 30 W |
| Model | TPG20 |
|---|

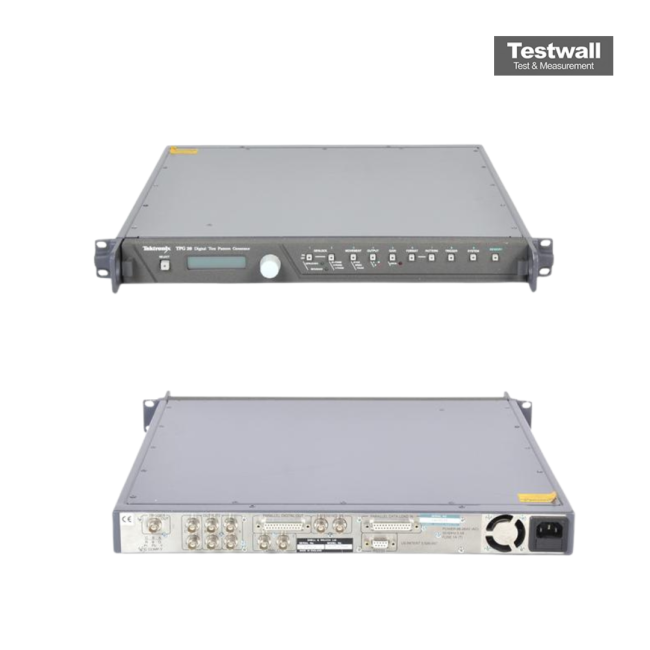

The Tektronix TPG20 is a precision digital test pattern generator offering over 500 test patterns, 10-bit signal resolution, and support for NTSC, PAL, SECAM, and widescreen formats. It accommodates RGB, YPbPr, composite, and Y/C outputs.
Perfect for calibration and diagnostics in broadcast and post-production setups, the TPG20 offers genlock capability and user-programmable pattern customization.
Testwall can supply the used Tektronix TPG20, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TPG20.
