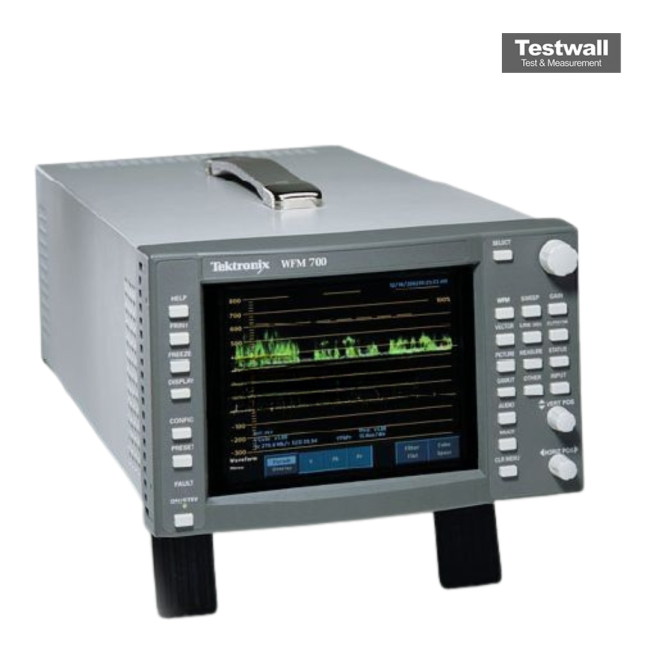

Tektronix WFM700M
| Attribute | Value |
|---|---|
| Display Type | High-resolution LCD flat panel display |
| Display Resolution | 1024 x 768 pixels |
| Signal Inputs | SD/HD Serial Digital Interface (SDI) inputs |
| Video Standards Supported | SMPTE 259M, SMPTE 292M, SMPTE 274M, SMPTE 296M |
| Audio Monitoring | Embedded audio monitoring with Dolby Digital support |
| Waveform Display Modes | Waveform, Vector, Gamut, Audio, Datalist, and Picture modes |
| Gamut Monitoring | Composite gamut and RGB gamut monitoring with alarm capability |
| Form Factor | Half-rack, 3U modular chassis design |
| Power Requirements | 100–240 VAC, 50/60 Hz, automatic voltage selection |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
Tektronix WFM700M Options:
- WFM700M - 2HD - Serial digital monitoring module for SMPTE 292M
- WFM700M - 2A - Serial digital monitoring module for ITU-R BT.601 and SMPTE 292M
- WFM700M - 2M - Serial digital measurement module for ITU-R BT.601 and SMPTE 292M
- WFM700M - DG - AES/EBU digital audio monitoring module
- WFM700M - A0 - North America power
- WFM700M - A1 - Universal EURO power
- WFM700M - A2 - United Kingdom power
- WFM700M - A3 - Australia power
- WFM700M - A5 - Switzerland power
- WFM700M - A6 - Japan power
- WFM700M - AC - China power
- WFM700M - 01 - Portable cabinet
- WFM700M - 02 - Dual rackmount
- WFM700M - C3 - Calibration Service 3 Years
- WFM700M - D1 - Calibration Data Report
- WFM700M - D3 - Calibration Data Report 3 Years (with Option C3)
- WFM700M - R3 - Repair Service 3 Years
- WFM700M - L0 - English user manual
- WFM700M - L5 - Japanese user manual
- WFM700M - L9 - Korean user manual
| Model | WFM700M |
|---|
The Tektronix WFM700M supports both SD and HD digital component video in a single unit, providing exclusive Diamond, Split Diamond, and Arrowhead displays for in-depth gamut compliance analysis. It features Safe Action/Title Graticules, multi-mode display, digital processing, Closed Caption decoding, ancillary data analysis, and comprehensive error detection. Eye Pattern Display and digital audio monitoring enhance operational efficiency.
Ideal for broadcast and video production, the WFM700M simplifies signal analysis, optimizes content QA, and ensures signal integrity with TFT LCD and remote access.
Testwall can supply the used Tektronix WFM700M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM700M.
