Tektronix SPG2
| Attribute | Value |
|---|---|
| Output Signals | Black Burst, Tri-Level Sync, HD/SD SDI, AES/EBU Audio, LTC Timecode |
| Video Standards Supported | SD (NTSC, PAL), HD (720p, 1080i, 1080p), 3G-SDI |
| Number of Outputs | Up to 11 configurable outputs depending on installed options |
| Reference Input | Black Burst or Tri-Level Sync external reference input for synchronization |
| GPS Synchronization | Optional GPS receiver for time-of-day and frequency synchronization |
| Timecode Support | LTC and VITC timecode generation with internal clock or GPS-derived time |
| Audio Outputs | AES/EBU digital audio output, configurable tone frequency and level |
| Power Requirements | 100–240 VAC, 50/60 Hz, approximately 35 W typical power consumption |
| Form Factor | 1U rack-mountable chassis, fits standard 19-inch equipment rack |
| Remote Control & Connectivity | Ethernet (10/100Base-T) for remote control via web browser or SNMP management |
| Model | SPG2 |
|---|

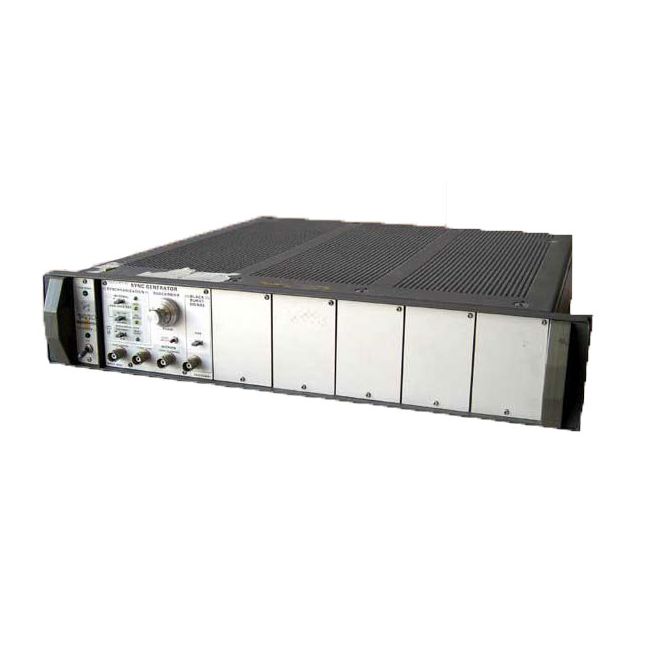

The Tektronix SPG2 NTSC Sync Generator delivers precise sync and timing signals for 1410 systems, including 1410 Option 01 NTSC Generator. It offers front and rear panel outputs for sync and blanking, and supports Black Burst with VIRS on line 18, 19, or full field. Gen-lock capability via external composite video ensures system accuracy across setups.
Used in conjunction with test signal generator modules, it supports operations in temperatures from 0°C to 50°C, up to 15,000 ft altitude, and includes extensive storage tolerances.
Testwall can supply the used Tektronix SPG2, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SPG2.
