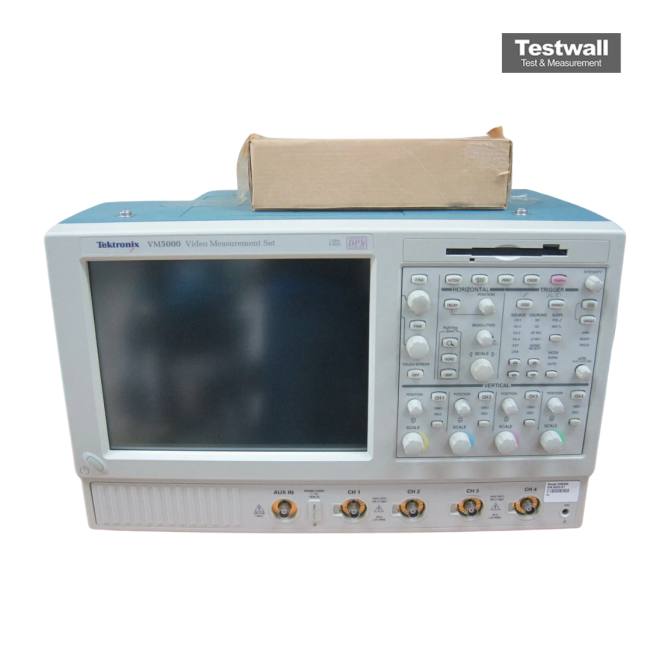

Tektronix VM5000
Automated Video Measurement Set
Up to 4 video input channels Measurement Channels
SD, HD, and composite analog video formats including NTSC, PAL, and SECAM Video Standards Supported
Waveform monitor and vectorscope with integrated flat-panel display Display Type
Up to 1.5 GHz for HD-SDI serial digital video signals Signal Bandwidth
Supports embedded audio monitoring including Dolby Digital and PCM audio Audio Monitoring
| Attribute | Value |
|---|---|
| Measurement Channels | Up to 4 video input channels |
| Video Standards Supported | SD, HD, and composite analog video formats including NTSC, PAL, and SECAM |
| Display Type | Waveform monitor and vectorscope with integrated flat-panel display |
| Signal Bandwidth | Up to 1.5 GHz for HD-SDI serial digital video signals |
| Audio Monitoring | Supports embedded audio monitoring including Dolby Digital and PCM audio |
| Interface Connectivity | SDI inputs/outputs, composite analog inputs, Ethernet, and USB ports |
| Gamut Monitoring | Diamond and split-diamond display for luma and RGB gamut monitoring |
| Closed Captioning Support | Decodes and displays CEA-608 and CEA-708 closed caption data |
| Eye Diagram / Jitter Analysis | Eye pattern display with jitter measurement capability for serial digital signals |
| Power Requirements | 100–240 VAC, 50/60 Hz, auto-ranging power supply |
Tektronix VM5000 Options:
- VM5000 - HD - HD Component analog video measurements and format support
- VM5000 - SD - SD component analog video measurements and format support
- VM5000 - VGA - RGBHV Video Measurements and VESA Compliance Tests
- VM5000 - 18 - Touch-screen interface
- VM5000 - 1R - Rackmount kit
- VM5000 - SM - Communication mask testing
- VM5000 - CP2 - TDSCPM2: ANSI/ITU telecom pulse compliance testing software (requires Option SM)
- VM5000 - ET3 - TDSET3: Ethernet compliance test software
- VM5000 - J2 - TDSDDM2: Disk drive measurements software
- VM5000 - J3E - TDSJIT3E: Jitter and timing analysis software essentials
- VM5000 - JA3 - TDSJIT3 v2.0: Advanced Jitter and timing analysis software
- VM5000 - JE3 - TDSJIT3 v2.0: Essentials Jitter and timing analysis software
- VM5000 - JT3 - TDSJIT3: Jitter and timing analysis software
- VM5000 - PW3 - TDSPWR3: Power measurements software
- VM5000 - USB - TDSUSBS: USB 2.0 Compliance test software only
- VM5000 - A0 - North America Power
- VM5000 - A1 - Universal EURO Power
- VM5000 - A2 - United Kingdom Power
- VM5000 - A3 - Australia Power
- VM5000 - A4 - 240 V, North America Power
- VM5000 - A5 - Switzerland Power
- VM5000 - A6 - Japan Power
- VM5000 - A10 - China Power
- VM5000 - A99 - No Power Cord or AC Adapter
- VM5000 - L0 - English Manual
- VM5000 - L1 - French Manual
- VM5000 - L3 - German Manual
- VM5000 - L4 - Spanish Manual
- VM5000 - L5 - Japanese Manual
- VM5000 - L7 - Simplified Chinese Manual
- VM5000 - L8 - Traditional Chinese Manual
- VM5000 - L9 - Korean Manual
- VM5000 - L10 - Russian Manual
- VM5000 - C3 - Calibration Service 3 Years
- VM5000 - C5 - Calibration Service 5 Years
- VM5000 - D1 - Calibration Data Report
- VM5000 - D3 - Calibration Data Report 3 Years (with Option C3)
- VM5000 - D5 - Calibration Data Report 5 Years (with Option C5)
- VM5000 - R3 - Repair Service 3 Years (including warranty)
- VM5000 - R5 - Repair Service 5 Years (including warranty)
| Model | VM5000 |
|---|
The Tektronix VM5000 automates video testing for HDTV and PC graphics devices like set-top boxes, multimedia PCs, and video semiconductors, offering superior speed, accuracy, and reliability.
It supports comprehensive analysis of component analog signals in SD, HDTV, and RGBHV formats, with detailed waveform, vector, and picture displays.
Testwall can supply the used Tektronix VM5000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix VM5000
