Tektronix
Tektronix TBS1052B
50 MHz Digital Storage Oscilloscope
50 MHz Bandwidth
2 Number of Channels
1 GS/s Sample Rate
2,500 points Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 50 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 7-inch WVGA (800 x 480) TFT color display |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Connectivity | USB 2.0 Host and Device ports |
Tektronix TBS1052B Options:
- TBS1052B - L1 - French overlay
- TBS1052B - L2 - Italian overlay
- TBS1052B - L3 - German overlay
- TBS1052B - L4 - Spanish overlay
- TBS1052B - L5 - Japanese overlay
- TBS1052B - L6 - Portuguese overlay
- TBS1052B - L7 - Simplified Chinese overlay
- TBS1052B - L8 - Traditional Chinese overlay
- TBS1052B - L9 - Korean overlay
- TBS1052B - L10 - Russian overlay
- TBS1052B - A0 - North America power plug (115 V, 60 Hz)
- TBS1052B - A1 - Universal Euro power plug (220 V, 50 Hz)
- TBS1052B - A2 - United Kingdom power plug (240 V, 50 Hz)
- TBS1052B - A3 - Australia power plug (240 V, 50 Hz)
- TBS1052B - A5 - Switzerland power plug (220 V, 50 Hz)
- TBS1052B - A6 - Japan power plug (100 V, 50/60 Hz)
- TBS1052B - A10 - China power plug (50 Hz)
- TBS1052B - A11 - India power plug (50 Hz)
- TBS1052B - A12 - Brazil power plug (60 Hz)
- TBS1052B - A99 - No power cord
- TBS1052B - D1 - Calibration Data Report
- TBS1052B - TBS1XX2B P2220 - Replaces standard probes with P2220 probes (200 MHz passive voltage probes with 1x/10x attenuation)
| Model | TBS1052B |
|---|

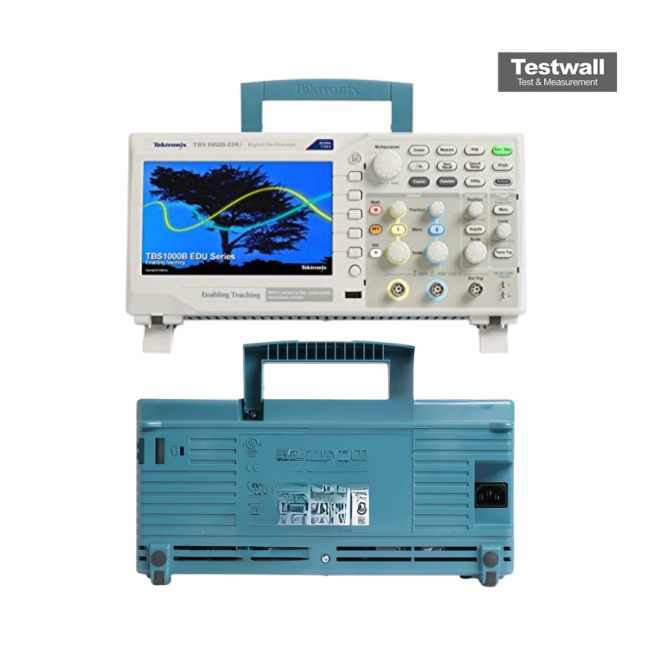

The Tektronix TBS1052B is a standard entry-level digital oscilloscope with 2 analog channels, 50 MHz bandwidth, and a 1 GS/s sample rate. It includes a vibrant 7″ color TFT display and advanced features for professional waveform analysis.
It offers USB connectivity, 34 automated measurements, limit testing, data logging, a frequency counter, and FFT capabilities, making it ideal for education and troubleshooting tasks.
Testwall can supply the used Tektronix TBS1052B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TBS1052B.
