Tektronix TDS2AF
TDS1000, TDS2000 Series Compatible Oscilloscope Series
Advanced Analysis Application Module Module Type
Over 100 automated measurements including FFT analysis Automated Measurements
Pass/Fail limit testing with waveform templates Limit Testing
Rectangular, Hanning, Flat Top, Blackman-Harris FFT Window Functions
| Attribute | Value |
|---|---|
| Compatible Oscilloscope Series | TDS1000, TDS2000 Series |
| Module Type | Advanced Analysis Application Module |
| Automated Measurements | Over 100 automated measurements including FFT analysis |
| Limit Testing | Pass/Fail limit testing with waveform templates |
| FFT Window Functions | Rectangular, Hanning, Flat Top, Blackman-Harris |
| Waveform Math | Advanced waveform math including addition, subtraction, multiplication, and FFT |
| Data Logging | Automated data logging and waveform storage capability |
| Interface | Plug-in module slot on compatible TDS oscilloscopes |
| Trigger Actions | Hardcopy, save waveform, and stop on pass/fail trigger actions |
| Power Requirement | Powered directly by host oscilloscope via module slot |
| Model | TDS2AF |
|---|

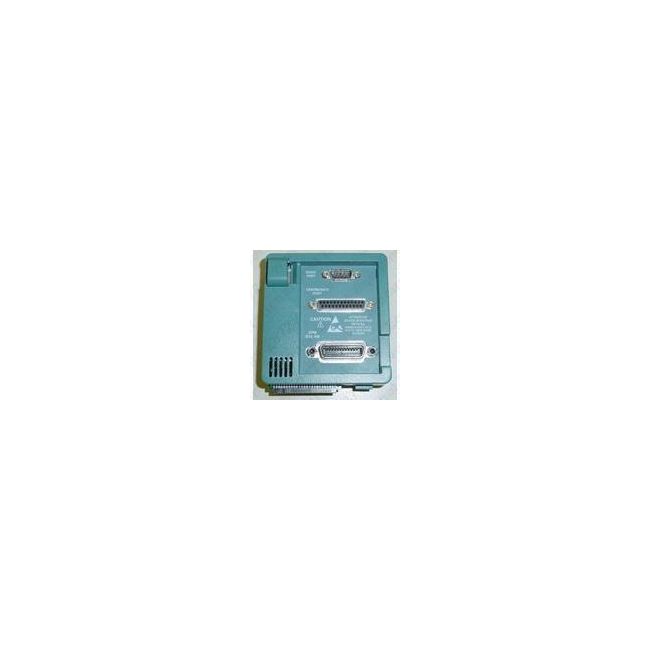

The Tektronix TDS2AF module is a communication/storage expansion accessory tailored for TDS2000-series oscilloscopes, featuring USB, RS‑232, GPIB, and a CompactFlash slot to streamline data handling.
This module integrates effortlessly onto the oscilloscope’s rear panel, allowing for waveform export, firmware updates, and remote access in a compact form.
Testwall can supply the used Tektronix TDS2AF, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2AF.
