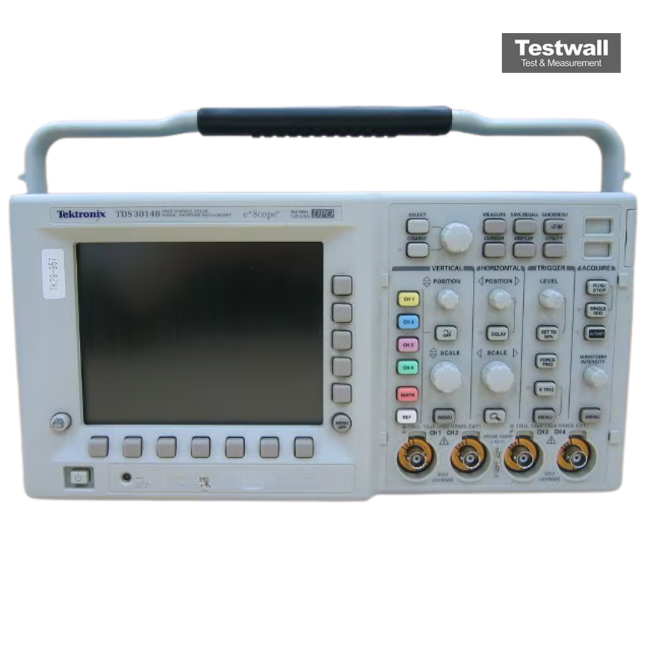

Tektronix TDS3014B
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 4 |
| Sample Rate | 1.25 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Rise Time | 3.5 ns |
| Input Impedance | 1 MΩ in parallel with 13 pF |
| Display | 5.6 inch color TFT LCD |
| Waveform Capture Rate | 3,600 waveforms per second |
| Input Voltage Range | 300 V RMS CAT II |
Tektronix TDS3014B Options:
- TDS3014B - TDS3TMT - Telecom mask testing application module
- TDS3014B - TDS3AAM - Advanced analysis module
- TDS3014B - TDS3LIM - Limit test module
- TDS3014B - TDS3VID - Extended video application module
- TDS3014B - TDS3SDI - 601 serial digital video module (requires a 4-channel TDS3000B Series oscilloscope)
- TDS3014B - TDS3GV - GPIB, VGA, RS-232 interfaces and TDSPCS1 OpenChoice PC Communication Software
- TDS3014B - TDS3BATB - Lithium Ion battery pack for up to 3 hours continuous operation without line power
- TDS3014B - TDS3CHG - Fast charger for battery pack
- TDS3014B - TDS3PRT - Plug-in printer for portable documentation
- TDS3014B - RM3000 - Rackmount kit
- TDS3014B - Opt. A0 - North America power
- TDS3014B - Opt. A1 - Universal EURO power
- TDS3014B - Opt. A2 - United Kingdom power
- TDS3014B - Opt. A3 - Australia power
- TDS3014B - Opt. A5 - Switzerland power
- TDS3014B - Opt. A6 - Japan power
- TDS3014B - Opt. A10 - China power
- TDS3014B - Opt. A99 - No power cord
- TDS3014B - Opt. L0 - English (includes front panel overlay)
- TDS3014B - Opt. L1 - French (includes front panel overlay)
- TDS3014B - Opt. L2 - Italian (includes front panel overlay)
- TDS3014B - Opt. L3 - German (includes front panel overlay)
- TDS3014B - Opt. L4 - Spanish (includes front panel overlay)
- TDS3014B - Opt. L5 - Japanese (includes front panel overlay)
- TDS3014B - Opt. L6 - Portuguese (includes front panel overlay)
- TDS3014B - Opt. L7 - Simplified Chinese (includes front panel overlay)
- TDS3014B - Opt. L8 - Traditional Chinese (includes front panel overlay)
- TDS3014B - Opt. L9 - Korean (includes front panel overlay)
- TDS3014B - Opt. LR - Russian (includes front panel overlay)
- TDS3014B - Opt. L99 - No manual
- TDS3014B - Opt. C3 - Calibration Service 3 years
- TDS3014B - Opt. C5 - Calibration Service 5 years
- TDS3014B - Opt. D1 - Calibration Data Report
- TDS3014B - Opt. D3 - Calibration Data Report 3 years (with Opt. C3)
- TDS3014B - Opt. D5 - Calibration Data Report 5 years (with Opt. C5)
- TDS3014B - Opt. R5 - Repair Service 5 years
| Model | TDS3014B |
|---|
The Tektronix TDS3014B is a 100 MHz, 4-channel digital oscilloscope featuring a 1.25 GS/s sample rate, 10 kpts record length, and 3,600 wfms/s capture rate. It includes a full VGA color LCD, 25 automatic measurements, FFT standard, 9-bit vertical resolution, and multi-language GUI for optimal usability.
Ideal for digital design, video service, education, and telecom testing, it offers anomaly detection, internal battery, plug-in printer, and versatile probe support.
Testwall can supply the used Tektronix TDS3014B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3014B.
