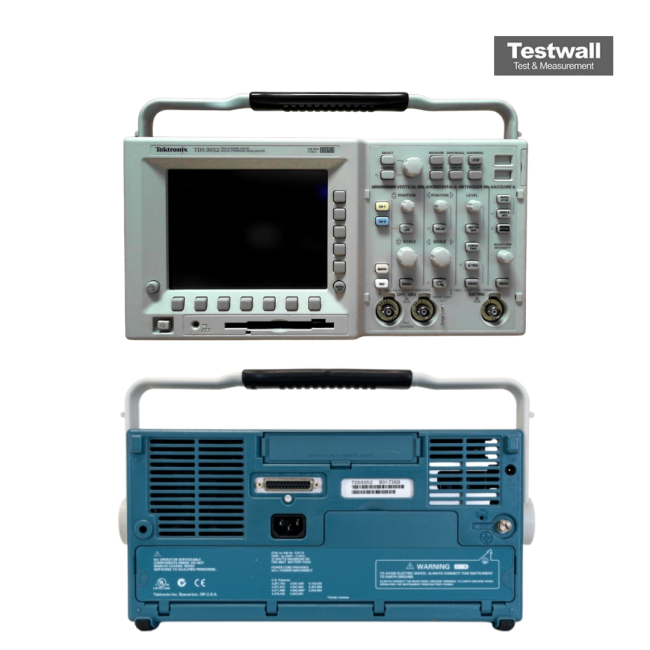

Tektronix TDS3052
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 |
| Sample Rate | 5 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 1 ns/div to 10 s/div |
| Rise Time | 700 ps |
| Display | Color LCD, 640 x 480 resolution |
| Input Impedance | 1 MΩ or 50 Ω |
Tektronix TDS3052 Options:
- TDS3052 - A1 - Universal Euro 220 V, 50 Hz (161-0104-06)
- TDS3052 - A2 - United Kingdom 240 V, 50 Hz (161-0104-07)
- TDS3052 - A3 - Australia 240 V, 50 Hz (161-0104-05)
- TDS3052 - A5 - Switzerland 220 V, 50 Hz (161-0167-00)
- TDS3052 - A6 - Japan 3 to 2 wire adapter (013-0310-00)
- TDS3052 - L1 - French User Manual
- TDS3052 - L2 - Italian User Manual
- TDS3052 - L3 - German User Manual
- TDS3052 - L4 - Spanish User Manual
- TDS3052 - L5 - Japanese User Manual
- TDS3052 - L6 - Portuguese User Manual
- TDS3052 - L7 - Simplified Chinese User Manual
- TDS3052 - L8 - Traditional Chinese User Manual
- TDS3052 - L9 - Korean User Manual
- TDS3052 - LR - Russian User Manual
| Model | TDS3052 |
|---|
The Tektronix TDS3052 is a high-performance 500 MHz, 2-channel digital oscilloscope with sample rates up to 5 GS/s. It features a full VGA color LCD, 21 automatic measurements, 9-bit vertical resolution, and advanced trigger options. Integrated modules support RS-232, GPIB, LAN, and VGA communications for flexible connectivity. It also includes FFT for harmonic analysis and supports a variety of active, differential, and current probes with automatic scaling.
Ideal for production testing, troubleshooting, and design, the TDS3052 simplifies data storage via its built-in floppy drive and enhances usability with a multilingual interface and QuickMenu operation.
Testwall can supply the used Tektronix TDS3052, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3052.
