Tektronix TDS3054C
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 1 ns/div to 10 s/div |
| Display | 5.7-inch color LCD |
| Connectivity | USB, RS-232, GPIB (optional), CompactFlash |
| Trigger Types | Edge, Video, Pulse Width, Logic, Serial (optional) |
Tektronix TDS3054C Options:
- TDS3054C - Opt. A0 - North America power cord
- TDS3054C - Opt. A1 - Universal Euro power cord
- TDS3054C - Opt. A2 - United Kingdom power cord
- TDS3054C - Opt. A3 - Australia power cord
- TDS3054C - Opt. A5 - Switzerland power cord
- TDS3054C - Opt. A6 - Japan power cord
- TDS3054C - Opt. A10 - China power cord
- TDS3054C - Opt. A11 - India power cord
- TDS3054C - Opt. A99 - No power cord
- TDS3054C - Opt. L0 - English manual
- TDS3054C - Opt. L1 - French manual
- TDS3054C - Opt. L2 - Italian manual
- TDS3054C - Opt. L3 - German manual
- TDS3054C - Opt. L4 - Spanish manual
- TDS3054C - Opt. L5 - Japanese manual
- TDS3054C - Opt. L6 - Portuguese manual
- TDS3054C - Opt. L7 - Simplified Chinese manual
- TDS3054C - Opt. L8 - Traditional Chinese manual
- TDS3054C - Opt. L9 - Korean manual
- TDS3054C - Opt. L10 - Russian manual
- TDS3054C - Opt. L99 - No manual
- TDS3054C - Opt. CA1 - Provides a single calibration event or coverage for the designated calibration interval, whichever comes first
- TDS3054C - Opt. C3 - Calibration Service – 3 years
- TDS3054C - Opt. C5 - Calibration Service – 5 years
- TDS3054C - Opt. D1 - Calibration Data Report
- TDS3054C - Opt. D3 - Calibration Data Report – 3 years (with Option C3)
- TDS3054C - Opt. D5 - Calibration Data Report – 5 years (with Option C5)
- TDS3054C - Opt. R5 - Repair Service – 5 year
| Model | TDS3054C |
|---|

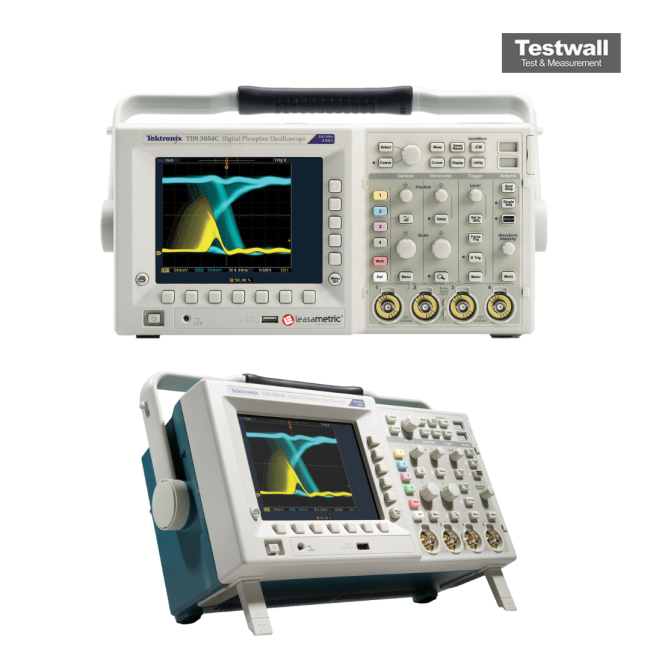

The Tektronix TDS3054C is a 500 MHz, 4-channel Digital Phosphor Oscilloscope offering 5 GS/s sampling on all channels, real-time DRT sampling, and sin(x)/x interpolation for high-precision signal capture. Featuring 10k record length, 3600 wfms/s capture rate, FFT, and USB/e*Scope connectivity, it excels in performance and portability with a compact 7 lb. (3.2 kg) design and front-panel USB.
Ideal for digital design, video service, education, power supply design, and telecom mask testing, the TDS3054C integrates advanced analysis tools and automatic measurements for simplified documentation and signal analysis.
Testwall can supply the used Tektronix TDS3054C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3054C.
