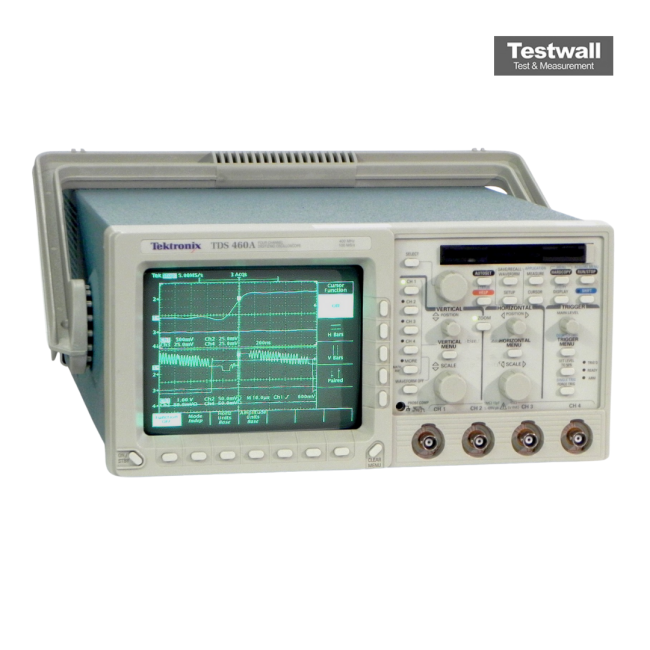

Tektronix TDS460A
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 400 MHz |
| Sample Rate | 100 MS/s per channel (400 MS/s on 2 channels) |
| Record Length | 15,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD display |
| Connectivity/Interface | GPIB, RS-232, Centronics (parallel) interfaces |
Tektronix TDS460A Options:
- TDS460A - Opt. XL - 120,000 Point Record Length; RS-232 and Centronics Hardcopy Interfaces; Extended Waveform Math: FFT; Integration, Differentiation; Front Cover and Accessories Pouch
- TDS460A - Opt. 1R - Rack Mount
- TDS460A - Opt. D1 - NIST, MIL-STD-45662A and ISO 9000 Calibration Data Report
- TDS460A - Opt. J2 - 2 year Post Warranty Repair
- TDS460A - Opt. J5 - 5 year Calibration Services, 5 years total
- TDS460A - Opt. A1 - Universal Euro 220 V, 50 Hz
- TDS460A - Opt. A2 - UK 240 V, 50 Hz
- TDS460A - Opt. A3 - Australian 240 V, 50 Hz
- TDS460A - Opt. A4 - North American 240 V, 60 Hz
- TDS460A - Opt. A5 - Switzerland 220 V, 50 Hz
- TDS460A - Opt. C3 - Three years of Calibration Services
- TDS460A - Opt. C5 - Five years of Calibration Services
- TDS460A - Opt. D3 - Test Data (requires Opt. C3)
- TDS460A - Opt. D5 - Test Data (requires Opt. C5)
- TDS460A - Opt. R5 - Repair warranty extended to cover five years
| Model | TDS460A |
|---|
The Tektronix TDS460A is a 400 MHz, 4-channel digital oscilloscope with a 100 MS/s sampling rate per channel, 30 kpts record length, and 1.75 ns rise time. It features 8-bit resolution, 25 automatic measurements, video trigger support (NTSC, PAL, SECAM), and a 3.5-inch DOS floppy drive for data management. Interfaces include RS-232 and Centronics, and modes such as Hi-Res and Peak Detect enhance diagnostic precision.
Designed for power electronics, analog/digital design, and video signal analysis, the TDS460A combines portability with a graphical user interface and icon-based menus for ease of use.
Testwall can supply the used Tektronix TDS460A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS460A
