Tektronix TDS5052
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 |
| Sample Rate | 5 GS/s |
| Record Length | Up to 8,000,000 points |
| Vertical Resolution | 8-bit |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD |
| Time Base Range | 200 ps/div to 200 s/div |
| Connectivity | Ethernet, GPIB, USB |
| Operating System | Windows XP Embedded |
Tektronix TDS5052 Options:
Options available for the Tektronix TDS5000 / TDS6000 / TDS7000 / CSA7000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS5052 - 2M - Extended record length
- TDS5052 - 3M - Extended record length
- TDS5052 - SM - Serial communication mask testing
- TDS5052 - JT3 - TDSJIT3 jitter and timing analysis
- TDS5052 - PWR - TDSPWR3 power measurement and analysis
- TDS5052 - USB - TDSUSB2 USB 2.0 compliance testing
- TDS5052 - ET3 - TDSET3 Ethernet compliance testing
- TDS5052 - 1K - Instrument cart
- TDS5052 - 1R - Rack mount kit

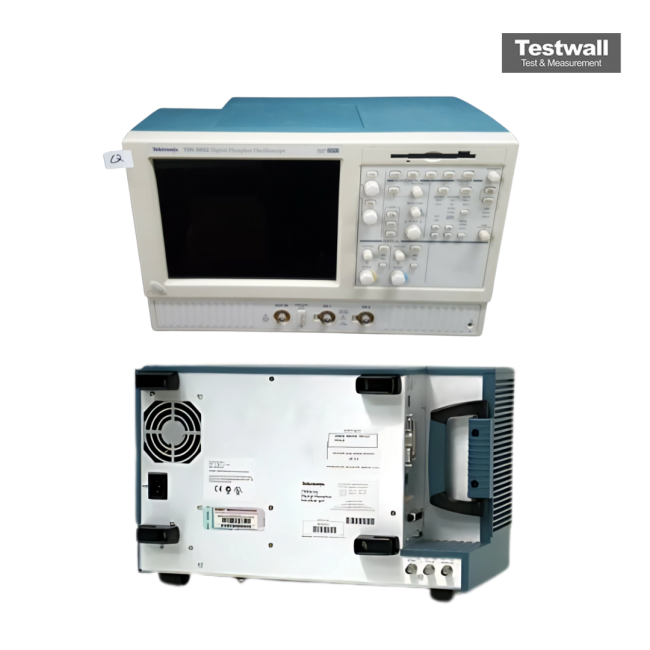

The Tektronix TDS5052 is a dual-channel digital phosphor oscilloscope offering 500 MHz bandwidth and 5 GS/s real-time sampling, designed for high-precision signal analysis. It includes 8 MB record length and captures up to 100,000 waveforms per second, ideal for complex debugging.
This unit features a 10.4″ active-matrix color display, optional Windows OS interface, advanced triggers, and waveform intensity grading to enhance analysis and reporting.
Testwall can supply the used Tektronix TDS5052, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS5052.
