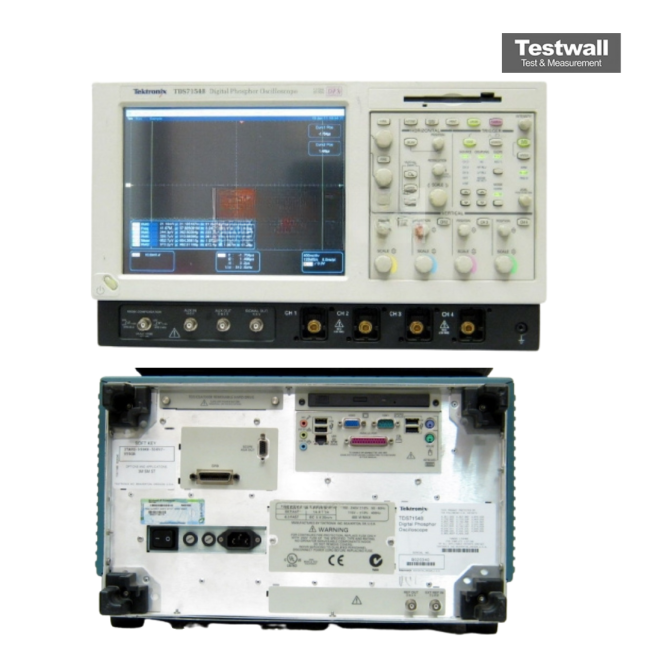

Tektronix TDS7154B
| Attribute | Value |
|---|---|
| Bandwidth | 1.5 GHz |
| Sample Rate | 20 GS/s (single channel), 10 GS/s (two channels), 5 GS/s (four channels) |
| Number of Channels | 4 |
| Record Length | Up to 50,000,000 points (with optional extended memory) |
| Vertical Resolution | 8 bits (11 bits with Hi Res mode) |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 200 ps/div to 1000 s/div |
| Display | 10.4-inch color LCD touchscreen |
| Operating System | Windows XP Embedded |
| Connectivity | USB, GPIB, Ethernet (10/100Base-T), Centronics parallel port |
Tektronix TDS7154B Options:
- TDS7154B - 2M - Acquisition Memory: 8 Msamples max, 2 Msamples/ch
- TDS7154B - 3M - Acquisition Memory: 16 Msamples max, 4 Msamples/ch
- TDS7154B - 4M - Acquisition Memory: 32 Msamples max, 8 Msamples/ch
- TDS7154B - 5M - Acquisition Memory: 64 Msamples max, 16 Msamples/ch
- TDS7154B - DVI - TDSDVI DVI compliance test solution
- TDS7154B - DVD - TDSDVD Optical storage analysis
- TDS7154B - ET3 - TDSET3 Ethernet compliance test software
- TDS7154B - JT3 - TDSJIT3 Advanced jitter analysis software
- TDS7154B - J3E - TDSJIT3 Essentials
- TDS7154B - J2 - TDSDDM2 Disk drive analysis software
- TDS7154B - CP2 - TDSCPM2 ANSI/ITU Telecom pulse compliance testing software (requires Option SM)
- TDS7154B - USB - TDSUSBS USB2.0 Compliance test S/W only (requires Option TDSUSBF)
- TDS7154B - SM - Serial communications mask testing
- TDS7154B - ST - Serial pattern trigger
- TDS7154B - PW3 - TDSPWR3 Power measurement and analysis software
- TDS7154B - RTE - Serial Data Compliance and Analysis Software
- TDS7154B - A0 - North America power cord
- TDS7154B - A1 - Universal EURO power cord
- TDS7154B - A2 - United Kingdom power cord
- TDS7154B - A3 - Australia power cord
- TDS7154B - A5 - Switzerland power cord
- TDS7154B - A6 - Japan power cord
- TDS7154B - A99 - No power cord or AC adapter
- TDS7154B - A10 - China power cord
- TDS7154B - 1K - K4000 Oscilloscope Cart
- TDS7154B - 1R - Rackmount Kit
- TDS7154B - FHD - Front-panel 40 GB removable hard disk drive, replaces floppy disk drive that goes on the rear panel
- TDS7154B - C3 - Calibration Service 3 Years
- TDS7154B - C5 - Calibration Service 5 Years
- TDS7154B - D1 - Calibration Data Report
- TDS7154B - D3 - Calibration Data Report 3 Years (with Option C3)
- TDS7154B - D5 - Calibration Data Report 5 Years (with Option C5)
- TDS7154B - R3 - Repair Service 3 Years
- TDS7154B - R5 - Repair Service 5 Years
| Model | TDS7154B |
|---|
The Tektronix TDS7154B is a high-performance digital oscilloscope featuring a 1.5 GHz analog bandwidth and a maximum sample rate of 20 GS/s, making it ideal for analyzing high-speed digital and RF signals. It provides a deep 100M record length per channel for comprehensive data capture and advanced waveform math capabilities for thorough signal analysis.
Equipped with DPO (Digital Phosphor Oscilloscope) technology, the TDS7154B allows for detailed visualization and correlation of complex signals in time and amplitude domains.
Testwall can supply the used Tektronix TDS7154B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS7154B.
