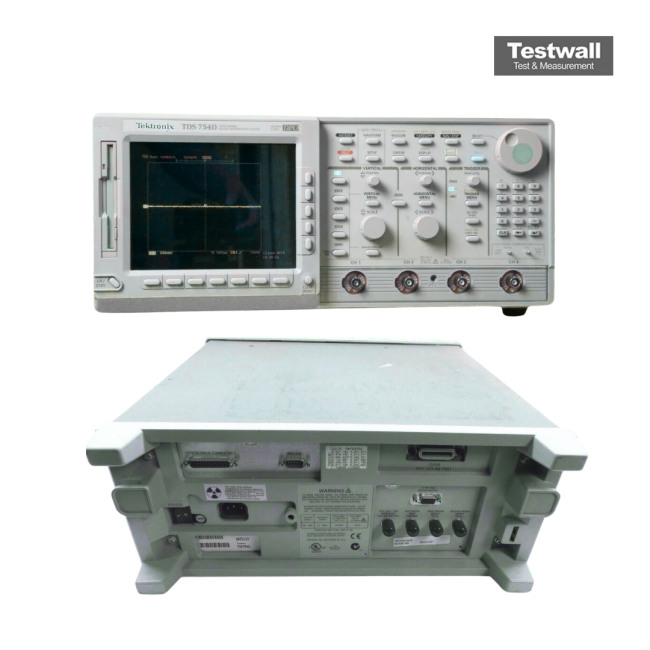

Tektronix TDS754D
4 Ch 500 MHz 2GS/s Digital Oscilloscope
500 MHz Bandwidth
2 GS/s (single channel), 1 GS/s (all channels) Sample Rate
4 Number of Channels
15,000 points per channel Record Length
8 bits Vertical Resolution
€1,100.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Sample Rate | 2 GS/s (single channel), 1 GS/s (all channels) |
| Number of Channels | 4 |
| Record Length | 15,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Display | Color LCD, 640 x 480 resolution |
| Input Impedance | 1 MΩ or 50 Ω |
| Connectivity / Interface | GPIB, RS-232, Centronics parallel port, floppy disk drive |
Tektronix TDS754D Options:
- TDS754D - Opt. 05 - Add video trigger (NTSC, PAL, HDTV, FlexFormat™)
- TDS754D - Opt. 1M - Add 130 K/channel memory length (500 K max)
- TDS754D - Opt. 2M - Add 2M/channel memory length (8 M max); includes internal hard disk drive
- TDS754D - Opt. 2C - Communication Signal Analyzer; includes comm triggers and communication mask testing
- TDS754D - Opt. 3C - Short-wavelength (Fibre Channel FC133, FC266, FC513, FC1063) Optical Reference Receiver; includes P6701B and system calibration
- TDS754D - Opt. 4C - Long-wavelength (SONET/SDH OC1/STM0, OC3/STM1, OC12/STM4) Optical Reference Receiver; includes P6703B and system calibration
- TDS754D - Opt. 34 - Add 1 each P6247 differential probe
- TDS754D - Opt. 35 - Add 1 each P6243 active probe
- TDS754D - Opt. 36 - Add 1 each P6139A passive probe (4 standard on TDS754D)
- TDS754D - Opt. 4D - Delete 4 each standard probes
- TDS754D - Opt. A1 - European power cord (220 V, 50 Hz)
- TDS754D - Opt. A2 - UK power cord (240 V, 50 Hz)
- TDS754D - Opt. A3 - Australian power cord (240 V, 50 Hz)
- TDS754D - Opt. A4 - North American power cord (240 V, 60 Hz)
- TDS754D - Opt. A5 - Swiss power cord (220 V, 50 Hz)
- TDS754D - Opt. 1K - Add K420 scope cart
- TDS754D - Opt. 1R - Rackmount kit
- TDS754D - Opt. L1 - Substitute French user manual for English user manual
- TDS754D - Opt. L3 - Substitute German user manual for English user manual
- TDS754D - Opt. L5 - Substitute Japanese user manual for English user manual
- TDS754D - Opt. L9 - Substitute Korean user manual for English user manual
- TDS754D - Opt. C3 - Three years of Calibration Services
- TDS754D - Opt. C5 - Five years of Calibration Services
- TDS754D - Opt. D1 - Cal Data Report
- TDS754D - Opt. D3 - Test Data (requires Opt. C3)
- TDS754D - Opt. D5 - Test Data (requires Opt. C5)
- TDS754D - Opt. R5 - Repair warranty extended to cover five years
| Model | TDS754D |
|---|
The Tektronix TDS754D is a 500 MHz, 4-channel digital oscilloscope designed for precision waveform capture and analysis. It features a high sample rate, advanced triggering, and comprehensive measurement capabilities, making it ideal for signal integrity validation.
With versatile input options and robust analysis tools, the TDS754D is perfect for electronics testing and R&D environments.
Testwall can supply the used Tektronix TDS754D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS754D.
