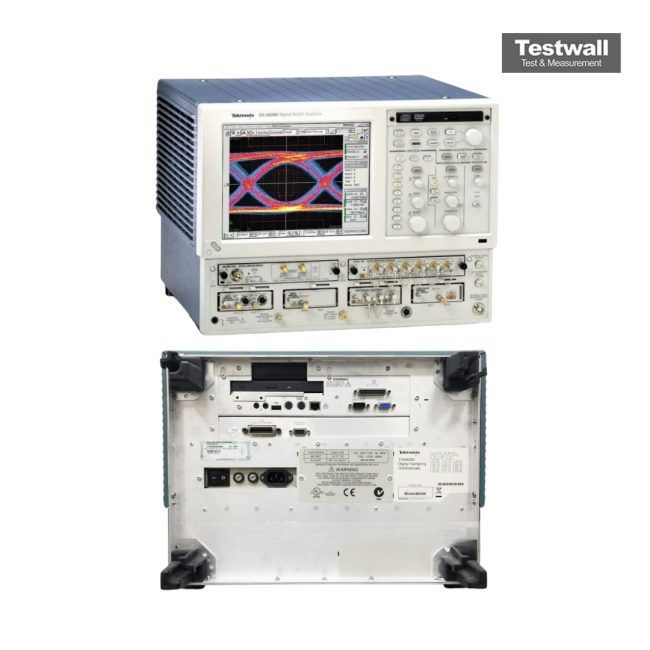

Tektronix TDS8200
| Attribute | Value |
|---|---|
| Bandwidth | Up to 70 GHz (with appropriate sampling modules) |
| Sample Rate | 200 kS/s equivalent-time sampling |
| Number of Channels | Up to 4 channels (with dual-channel sampling modules) |
| Timebase Range | 10 ps/div to 1 ms/div |
| Vertical Resolution | 12-bit (with Hi-Res acquisition mode) |
| Rise Time | As low as 4.5 ps (with 80E04 module) |
| Module Slots | 2 module slots for interchangeable sampling modules |
| Display | 10.4-inch color LCD display |
| Connectivity | GPIB, RS-232, Ethernet (10/100Base-T) |
| Operating System | Windows XP Embedded |
Tektronix TDS8200 Options:
- TDS8200 - 1K - Cart
- TDS8200 - 1R - Rackmount kit (includes: hardware, tooling and instructions for converting bench model to rackmount configuration)
- TDS8200 - GT - Gated Trigger
- TDS8200 - JNB - Advanced Jitter, Noise and BER Analysis Software
- TDS8200 - ICON - Interconnect Analysis and Modeling Software
- TDS8200 - IMESX - Model Extraction Software
- TDS8200 - ISPAR - S-Parameter Software
- TDS8200 - C3 - Calibration Service 3 Years
- TDS8200 - C5 - Calibration Service 5 Years
- TDS8200 - D1 - Calibration Data Report
- TDS8200 - D3 - Calibration Data Report 3 Years (with Option C3)
- TDS8200 - D5 - Calibration Data Report 5 Years (with Option C3)
- TDS8200 - R3 - Repair Service 3 Years
- TDS8200 - R5 - Repair Service 5 Years
- TDS8200 - A0 - North America Power
- TDS8200 - A1 - Universal EURO Power
- TDS8200 - A2 - United Kingdom Power
- TDS8200 - A3 - Australia Power
- TDS8200 - A4 - 240 V, North America Power
- TDS8200 - A5 - Switzerland Power
- TDS8200 - A10 - China Power
- TDS8200 - A99 - No Power Cord
| Model | TDS8200 |
|---|
The Tektronix TDS8200 is a 70+ GHz digital sampling oscilloscope designed for high-speed signal analysis with very low jitter, under 200 fs RMS. It supports up to eight signal channels, includes a FrameScan acquisition mode, and offers variable persistence waveform databases, 3D eye diagram storage, and advanced TDR capabilities.
Ideal for semiconductor and component testing, the TDS8200 provides precise measurements with customizable acquisition windows and robust waveform math functions for in-depth analysis.
Testwall can supply the used Tektronix TDS8200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS8200.
