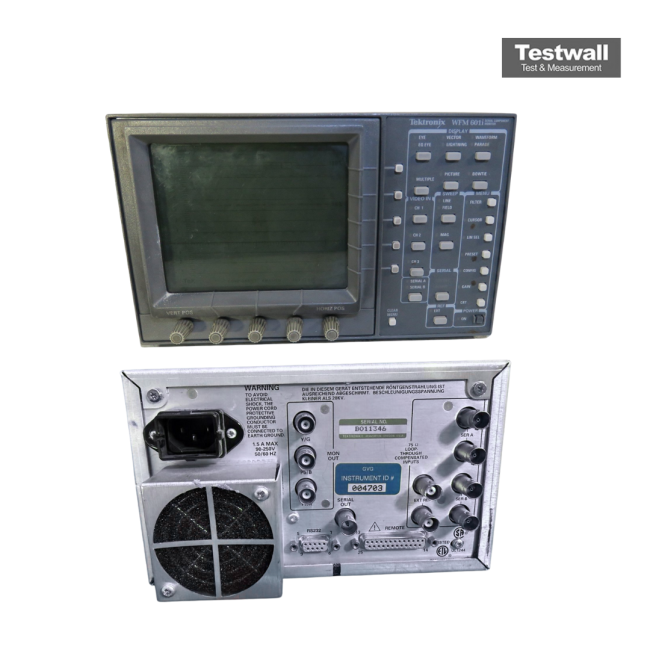

Tektronix WFM601i
| Attribute | Value |
|---|---|
| Input Signal Standards | SMPTE 259M (270 Mb/s), SMPTE 292M (1.485 Gb/s and 1.485/1.001 Gb/s) |
| Number of SDI Inputs | 2 (A and B inputs with loop-through) |
| Display Type | Waveform, Vector, Parade, and Gamut display modes |
| Supported Video Formats | 525/59.94, 625/50, 720p, 1080i HD formats |
| Audio Monitoring | Supports embedded audio monitoring for SDI signals, up to 16 channels |
| Gamut Monitoring | Diamond and Arrowhead gamut displays for luma and composite gamut checking |
| Ancillary Data Monitoring | ANC data inspection including VANC and HANC data monitoring |
| Power Requirements | 100–240 VAC, 50/60 Hz, approximately 35 W maximum power consumption |
| Form Factor | Half-rack 1U portable/rackmount unit |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Model | WFM601i |
|---|
The Tektronix WFM601i provides 4:2:2 component serial digital monitoring, displaying video signals in analog component format via parade or overlay. It includes an equivalent time sampler for detailed eye pattern analysis and supports EDH error detection with serial format verification.
Ideal for signal integrity verification, it features jitter measurement across selectable bandwidths and versatile display formats including RGB or Y PB PR, supporting up to three channels simultaneously.
Testwall can supply the used Tektronix WFM601i, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM601i.
