Tektronix

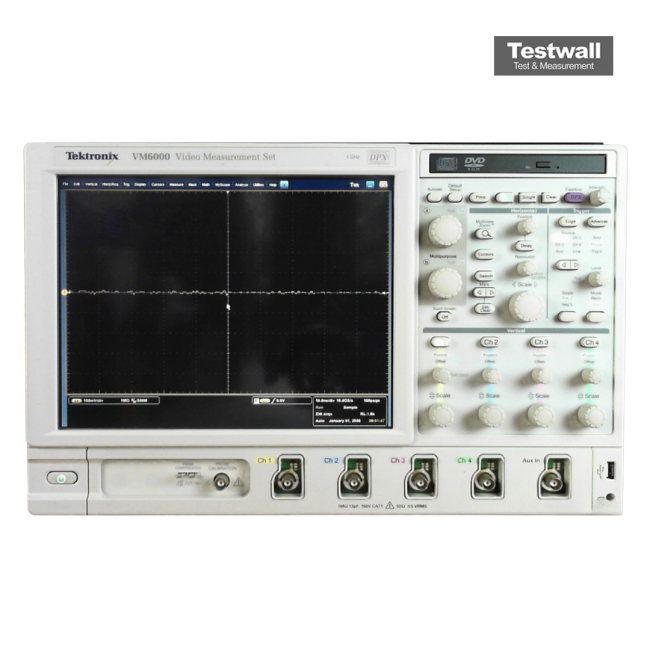

Tektronix VM6000
AUTOMATED VIDEO MEASUREMENT SET
Up to 4 channels Measurement Channels
NTSC, PAL, SECAM, and HDTV formats Video Standards Supported
Video measurement and analysis system Signal Analysis Type
High-resolution color display with waveform and vector monitoring Display Type
75 Ohms Input Impedance
| Attribute | Value |
|---|---|
| Measurement Channels | Up to 4 channels |
| Video Standards Supported | NTSC, PAL, SECAM, and HDTV formats |
| Signal Analysis Type | Video measurement and analysis system |
| Display Type | High-resolution color display with waveform and vector monitoring |
| Input Impedance | 75 Ohms |
| Measurement Functions | Luminance, chrominance, sync timing, and distortion measurements |
| Interface/Connectivity | GPIB and RS-232 remote control interfaces |
| Modular Architecture | Plug-in module based system for flexible configuration |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
Tektronix VM6000 Options:
- VM6000 - Opt. HD - Option key enabling HD component analog video measurements and format support
- VM6000 - Opt. SD - Option key enabling SD component analog video measurements and format support
- VM6000 - Opt. VGA - Option key enabling RGBHV Video Measurements and VESA Compliance Tests
- VM6000 - Opt. SS - Signal sources package (single instrument license)
- VM6000 - Opt. 2RL - Record length 80 MS max / 20 MS/CH
- VM6000 - Opt. 5RL - Record length 200 MS max / 50 MS/CH
- VM6000 - Opt. 2SR - Double maximum real-time sample rate: 40 GS/s (1 channel), 20 GS/s (2 channels), 10 GS/s (3 or 4 channels)
- VM6000 - Opt. 1P - Thermal printer in the porch
- VM6000 - Opt. LSA - Logic and Serial Analysis software option
- VM6000 - Opt. JE3 - Jitter and Timing Measurements software option
- VM6000 - Opt. ET3 - Ethernet Compliance Testing software option (requires Ethernet Test Fixture)
- VM6000 - Opt. JA3 - Advanced Jitter and Timing Measurements software option
- VM6000 - Opt. USB - USB 2.0 Compliance Testing software option (requires TDSUSBF USB Test Fixture)
- VM6000 - Opt. MTM - MPEG Testing and Measurement software option
- VM6000 - Opt. PWR - Power Measurements software option
- VM6000 - Opt. L0 - English Manual
- VM6000 - Opt. L1 - French Manual
- VM6000 - Opt. L3 - German Manual
- VM6000 - Opt. L5 - Japanese Manual
- VM6000 - Opt. L7 - Simple Chinese Manual
- VM6000 - Opt. L8 - Standard Chinese Manual
- VM6000 - Opt. L9 - Korean Manual
- VM6000 - Opt. L10 - Russian Manual
- VM6000 - Opt. A0 - North America power cord
- VM6000 - Opt. A1 - Universal European Union power cord
- VM6000 - Opt. A2 - UK power cord
- VM6000 - Opt. A3 - Australia power cord
- VM6000 - Opt. A5 - Switzerland power cord
- VM6000 - Opt. A6 - Japan power cord
- VM6000 - Opt. A10 - China power cord
- VM6000 - Opt. A11 - India power cord
- VM6000 - Opt. A99 - No power cord
- VM6000 - Opt. CA1 - Provides a single calibration event or coverage for the designated calibration interval, whichever comes first
- VM6000 - Opt. C3 - Calibration Service 3 Years
- VM6000 - Opt. C5 - Calibration Service 5 Years
- VM6000 - Opt. D1 - Calibration Data Report
- VM6000 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- VM6000 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- VM6000 - Opt. R3 - Repair Service 3 Years
- VM6000 - Opt. R5 - Repair Service 5 Years
| Model | VM6000 |
|---|
The Tektronix VM6000 automates precise video testing for HDTVs and PC graphics devices, offering fast, accurate, and reliable performance. It supports SDTV, HDTV, and RGBHV formats with 1 GHz bandwidth across four channels and includes comprehensive signal analysis, GPIB/LAN control, and an intuitive 12.1” XGA touchscreen.
Ideal for design validation and quality control, it features automated VESA compliance, companion test signal packages, jitter and timing analysis, and automatic report generation.
Testwall can supply the used Tektronix VM6000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix VM6000.
