Tektronix TIVM1
IsoVu Isolated Probe, 1 GHz Medium Voltage
IsoVu Isolated Measurement System Probe Type
Up to 1 GHz Bandwidth
>100 dB at DC, >80 dB at 1 MHz Common Mode Rejection Ratio (CMRR)
±2500 V peak Maximum Common Mode Voltage
±500 V peak Differential Voltage Range
| Attribute | Value |
|---|---|
| Probe Type | IsoVu Isolated Measurement System |
| Bandwidth | Up to 1 GHz |
| Common Mode Rejection Ratio (CMRR) | >100 dB at DC, >80 dB at 1 MHz |
| Maximum Common Mode Voltage | ±2500 V peak |
| Differential Voltage Range | ±500 V peak |
| Dynamic Range | ±50 V / ±500 V selectable |
| Isolation Technology | Optically isolated, fully floating measurement |
| Power Source | Powered via fiber optic cable (no batteries required) |
| Compatible Oscilloscopes | Tektronix 5 Series MSO, 6 Series MSO, and other compatible Tektronix platforms |
| Connector Interface | Fiber optic cable connection to oscilloscope front panel |
Tektronix TIVM1 Options:
- TIVM1 - L0 - English User Manual
- TIVM1 - L1 - French User Manual
- TIVM1 - L2 - Italian User Manual
- TIVM1 - L3 - German User Manual
- TIVM1 - L4 - Spanish User Manual
- TIVM1 - L5 - Japanese User Manual
- TIVM1 - L6 - Portuguese User Manual
- TIVM1 - L7 - Simplified Chinese User Manual
- TIVM1 - L8 - Traditional Chinese User Manual
- TIVM1 - L9 - Korean User Manual
- TIVM1 - L10 - Russian User Manual
- TIVM1 - A0 - US Plug, 115 V, 60 Hz
- TIVM1 - A1 - Euro Plug, 220V, 50 Hz
- TIVM1 - A2 - UK Plug, 240V, 50 Hz
- TIVM1 - A3 - Australian Plug, 240V, 50 Hz
- TIVM1 - A6 - Japanese Plug, 100V, 110/120 Volt, 60 Hz
| Model | TIVM1 |
|---|

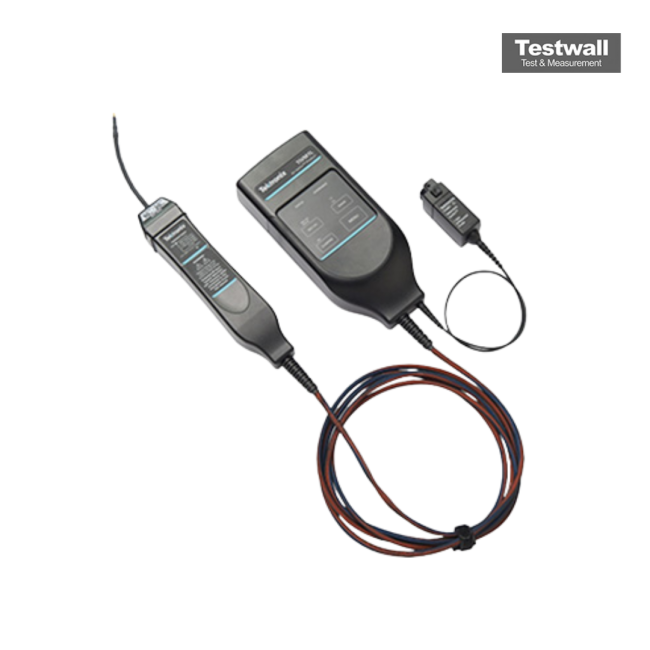

The Tektronix TIVM1 IsoVu® Measurement System enables precise high-bandwidth differential signal measurement up to ±50 Vpk with best-in-class common mode rejection (120 dB @100 MHz), supporting 1 GHz bandwidth and 60 kV peak common mode voltage isolation.
Designed for GaN, SiC, IGBT applications, it integrates optical isolation, laser-driven sensor heads, and remote probing via TekVPI interfaces or TCA-VPI50 adapter.
Testwall can supply the used Tektronix TIVM1, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TIVM1.
